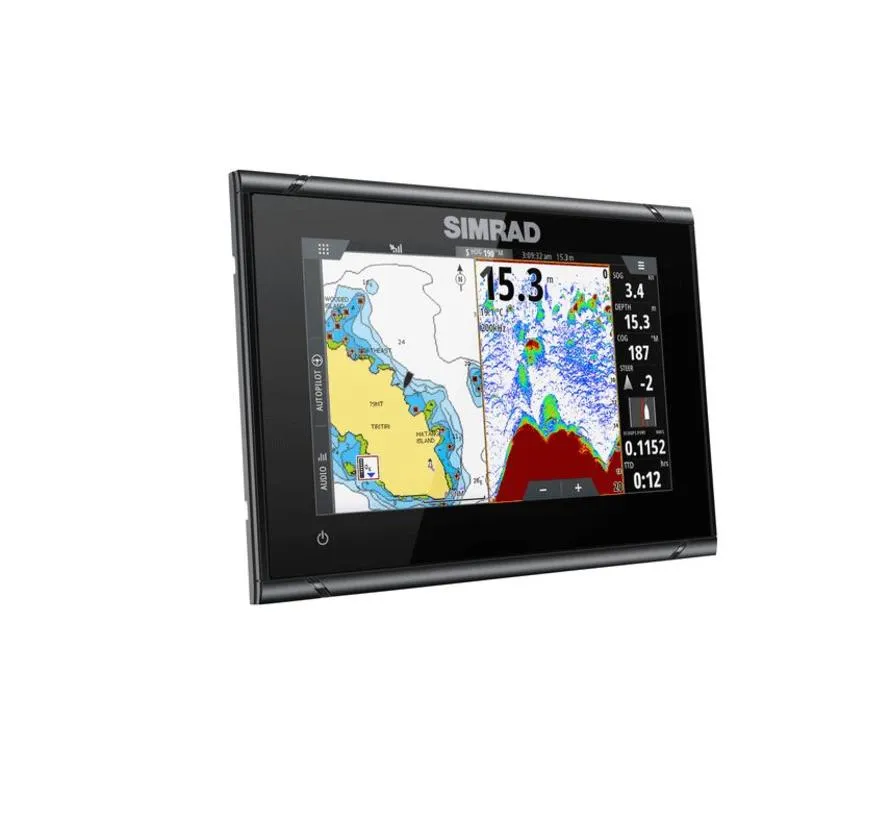

The Simrad GO7 XSR is a compact 7-inch multifunction chartplotter designed for sportboats and smaller cruisers.
Variants
No transducer
- Part number: 000-14448-001
- EAN: 9420024172162
- No transducer included
With HDI M/H transducer
- Part number: 000-14446-001
- EAN: 9420024172148
- Medium/High HDI transducer included
- CHIRP
- Traditional sonar
- DownScan Imaging
- Water temperature

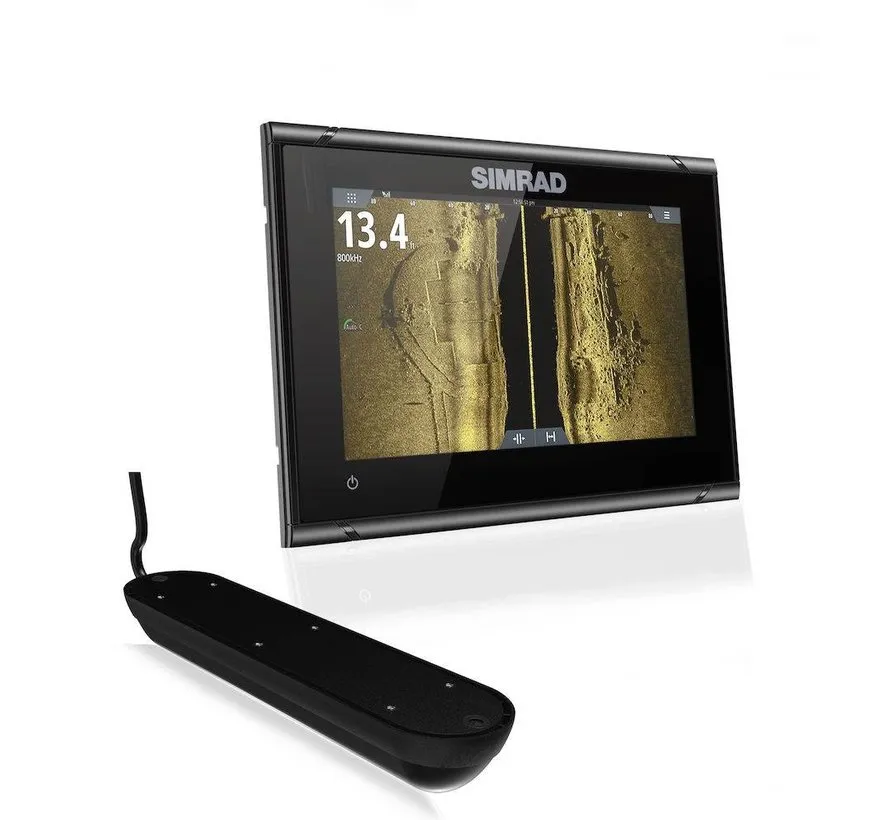

With Active Imaging 3-in-1
- Part number: 000-14839-001
- EAN: 9420024177020
- Active Imaging 3-in-1 included
- CHIRP
- SideScan
- DownScan Imaging
- FishReveal
- Water temperature
Display
- 7-inch touchscreen
- Resolution: 800 × 480
- Brightness: 1200 nits
- Viewing angle: 80°
- Multitouch

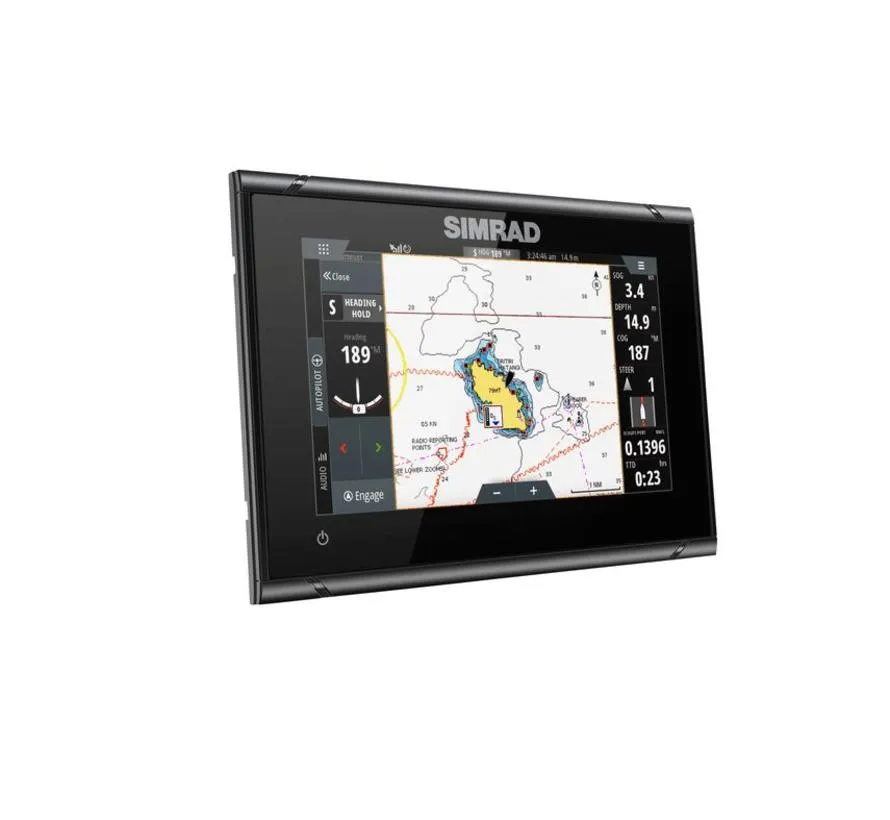

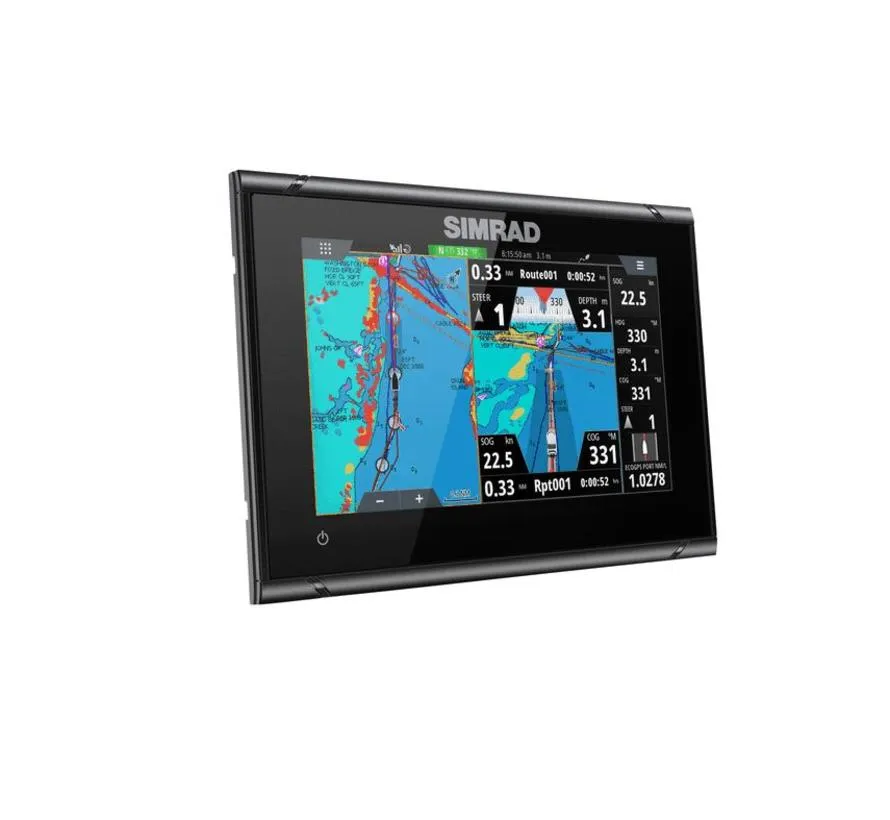

Navigation
- Integrated 10 Hz GPS
- Waypoints
- Routes
- Tracks
- AIS display via NMEA 2000
Chart support
Compatible with suitable:
- C-MAP DISCOVER
- C-MAP REVEAL
- Navionics+
- Navionics Platinum+

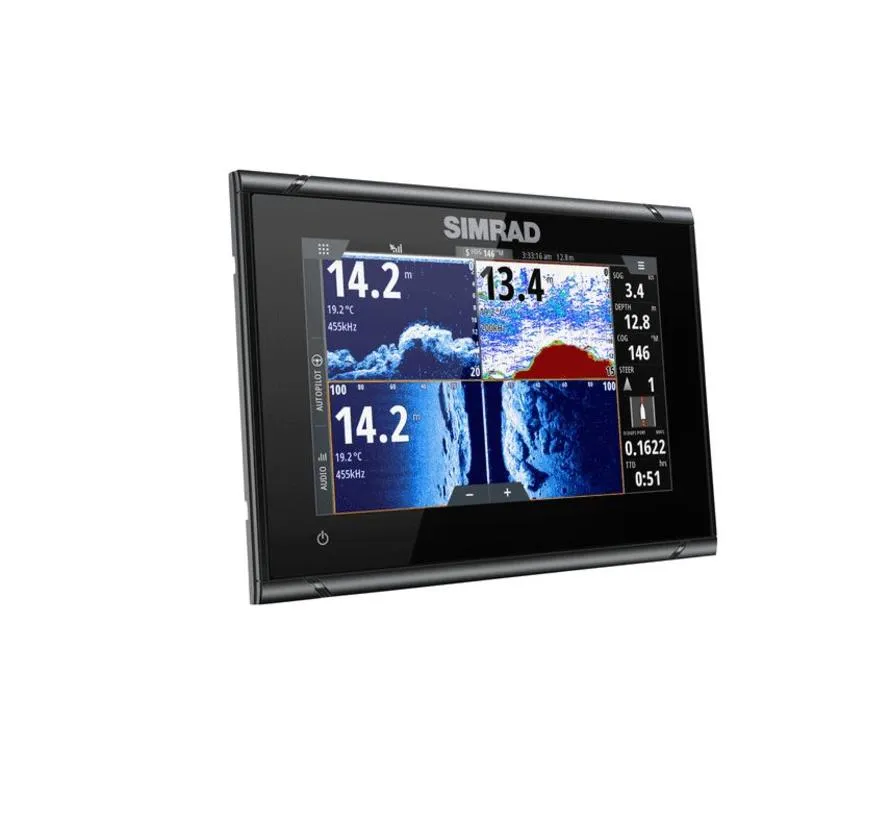

Sonar
Depending on transducer:
- CHIRP
- Traditional fishfinder
- DownScan Imaging
- SideScan
- ForwardScan
- Active Imaging
- FishReveal

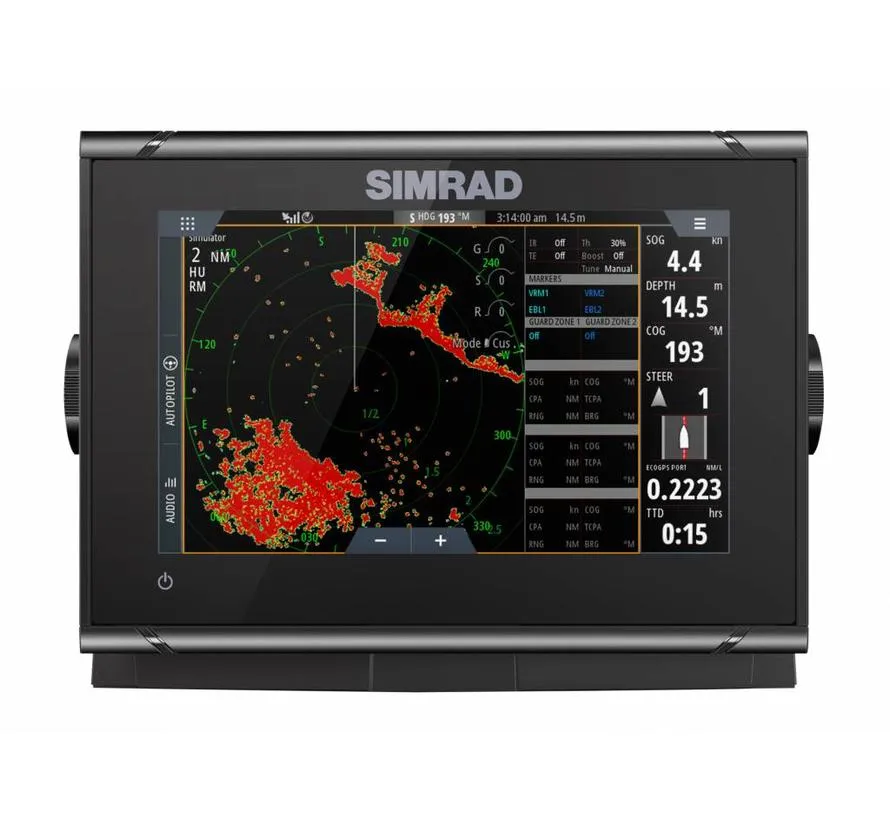

Radar
Compatible with suitable Simrad HALO and Broadband radar systems.

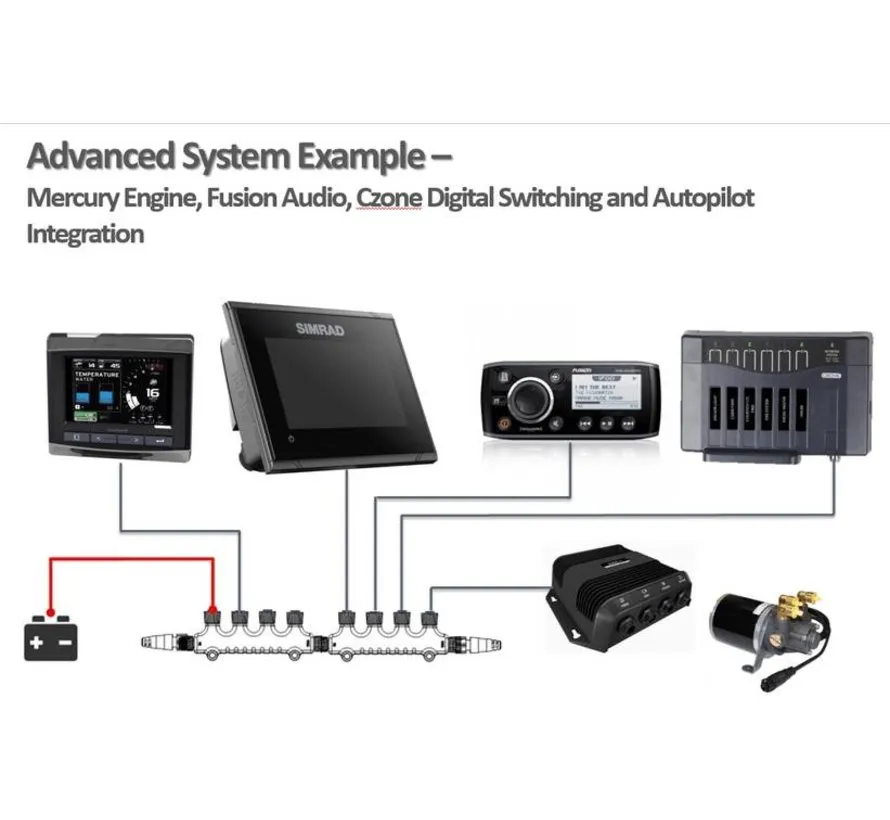

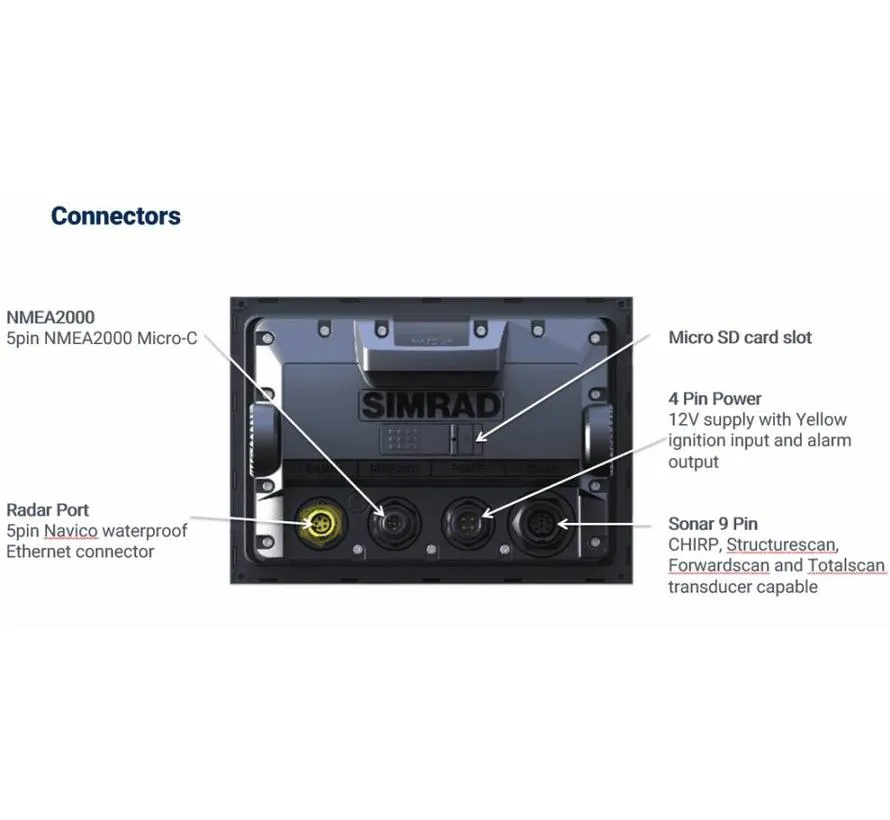

Networking and connectivity
- NMEA 2000
- Micro-C
- Ethernet

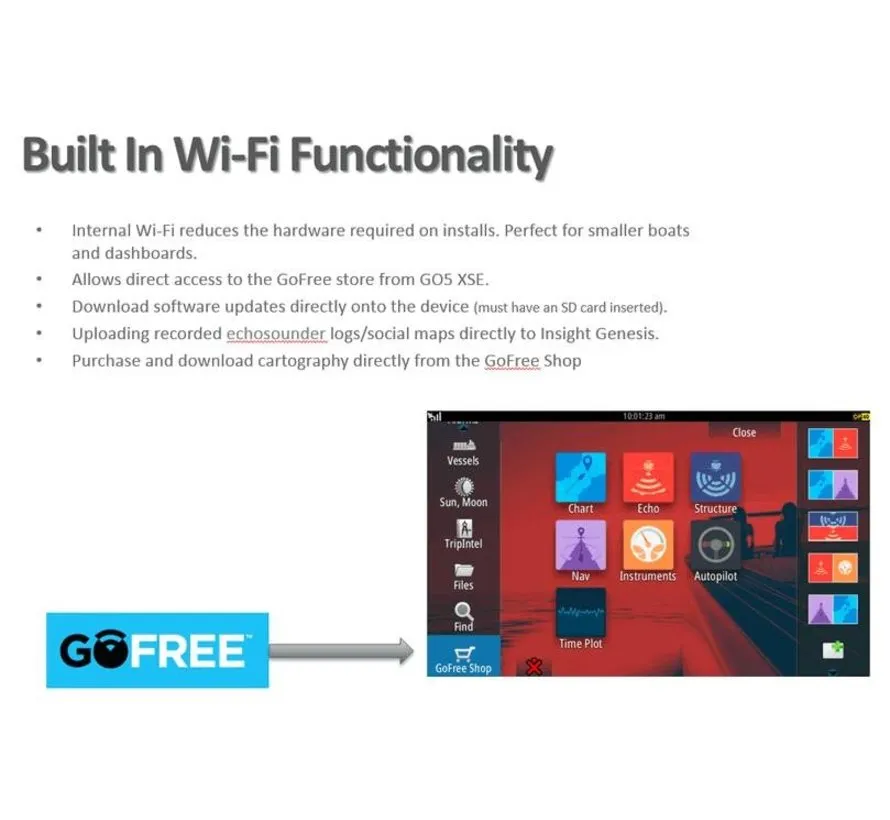

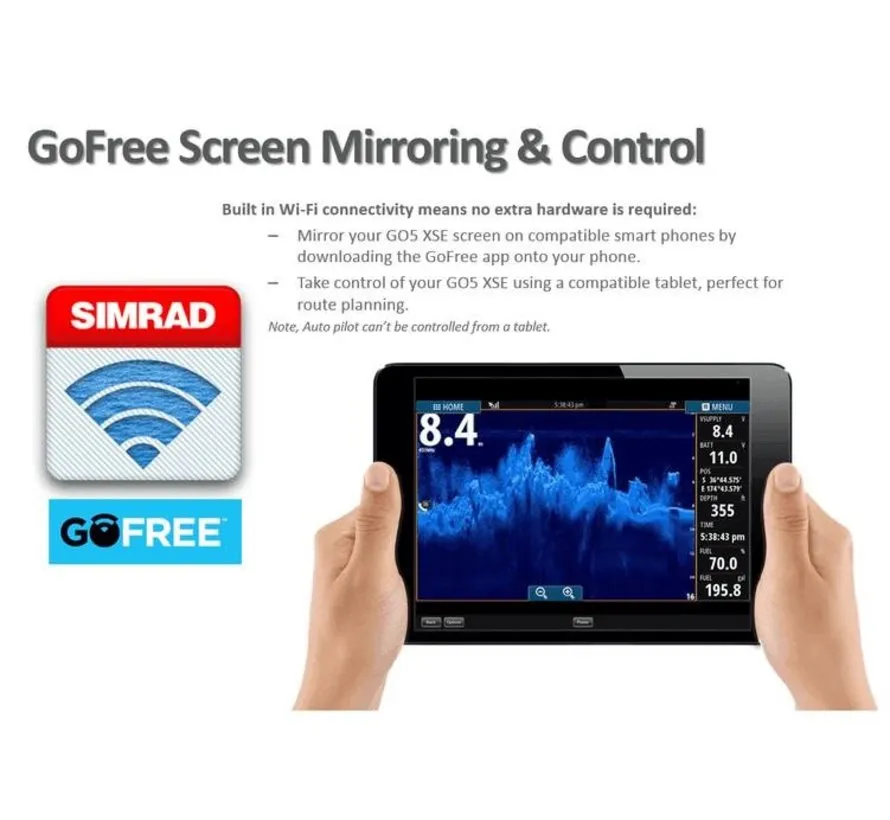

- WiFi
- Bluetooth
- microSD
Power
- Supply voltage: 10–17 V DC
- Typical consumption: approx. 12 W
- Maximum consumption: approx. 20 W
- Recommended fuse: 3 A
Dimensions
- 197 × 141 × 82.7 mm
- Weight: approx. 1.32 kg
Environmental
- IPX6 / IPX7
- Operating temperature: -15 °C to +55 °C
