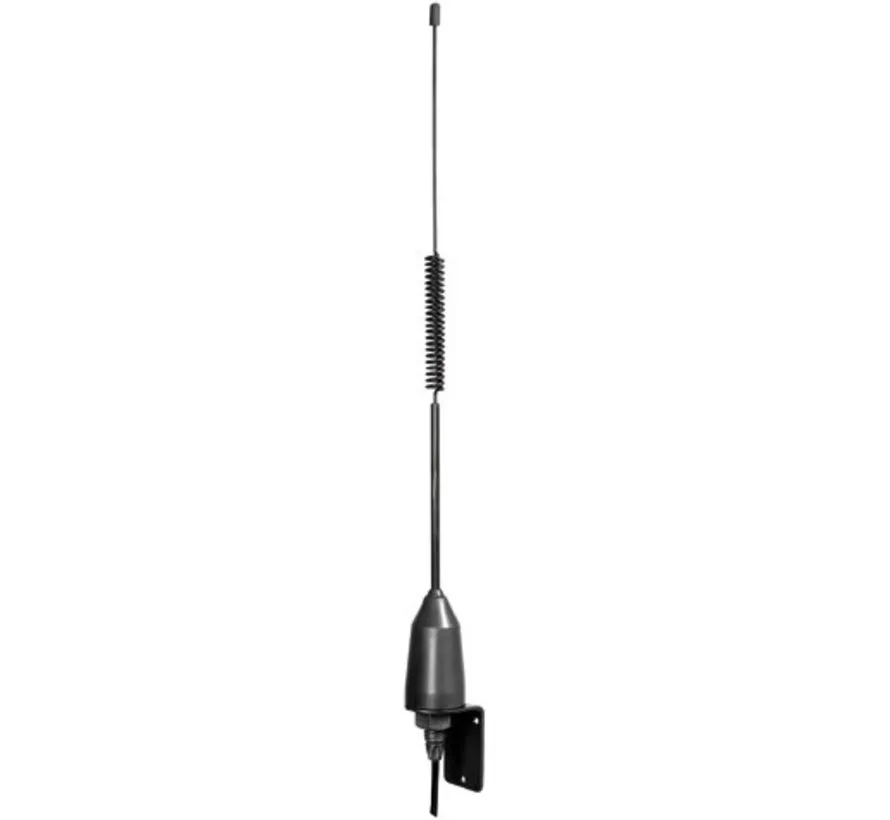

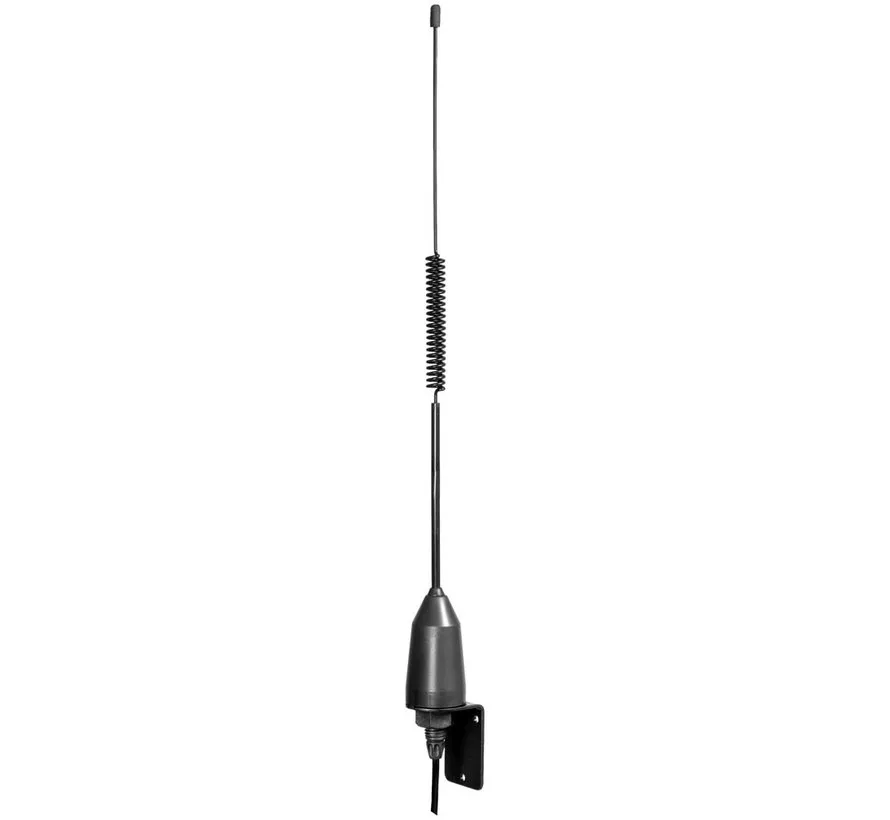

The Shakespeare Raider is a compact VHF marine antenna specifically designed for RIBs (Rigid Inflatable Boats), fast powerboats and small marine craft.
Its short, black stainless steel whip provides a practical alternative to traditional long fibreglass antennas, particularly on vessels exposed to vibration, impact and high-speed operation.
The antenna features an integrated mounting bracket and a solderless connection system for straightforward installation.
Technical specifications
-
Brand: Shakespeare
-
Series: V-Tronix Raider
-
Model: YRR / RIB Raider
-
Product type: VHF marine antenna
-
Frequency range: 156-162 MHz
-
Antenna gain: 3 dBi
-
Impedance: 50 ohms
-
VSWR: less than 1.5:1 at resonance
-
Maximum input power: 50 W
-
Antenna length: 480 mm / 48 cm
-
Whip material: stainless steel
-
Colour: black
-
Construction: short, semi-rigid whip
-
Connection system: solderless
-
Coaxial cable: RG58 CU
-
Cable length: 8 metres according to Dutch product specifications
-
Connector: PL259 (UHF male)
-
Mounting: integrated black bracket
-
EAN-13: 0719441210052
-
UPC: 719441210052
Applications
-
Rigid Inflatable Boats (RIBs)
-
Fast powerboats
-
Inflatable boats
-
Small commercial vessels
-
Marine VHF communications
-
Compatible fixed VHF marine radios with a 50-ohm antenna connection
Package contents
-
Shakespeare Raider VHF antenna
-
Integrated mounting bracket
-
RG58 coaxial cable
-
PL259 connector
This antenna is also known as V-tronix YRR marine antenna
