Suzuki Adapter Digitale meter MECH 3666196L30
16 = Gateway unit
11 = Adapter Digitale meter MECH

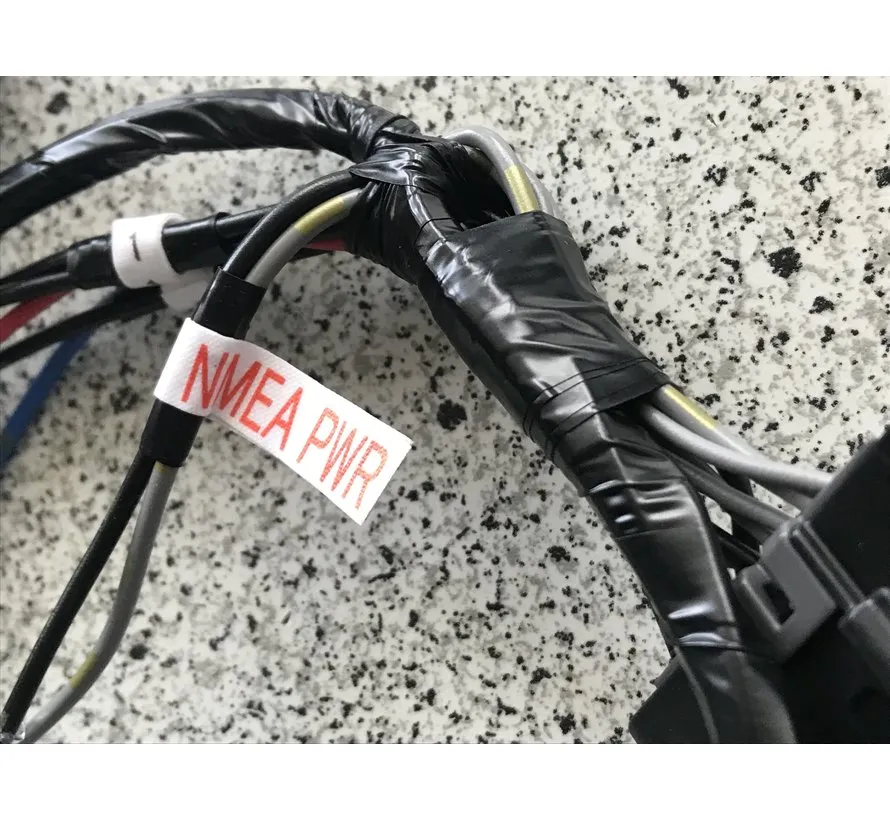

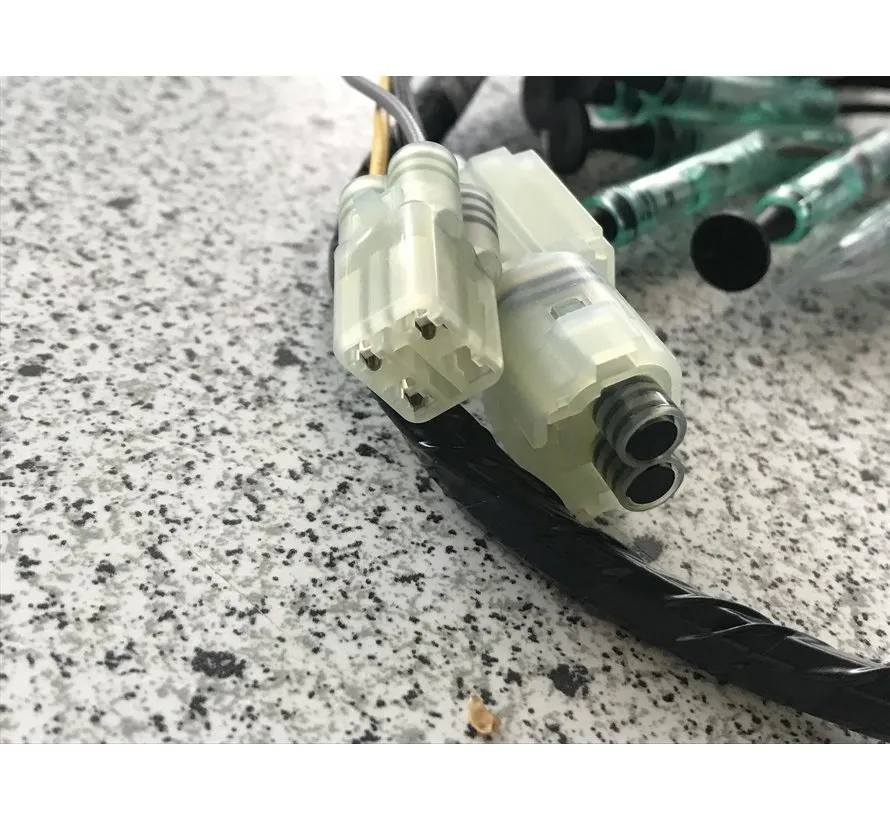

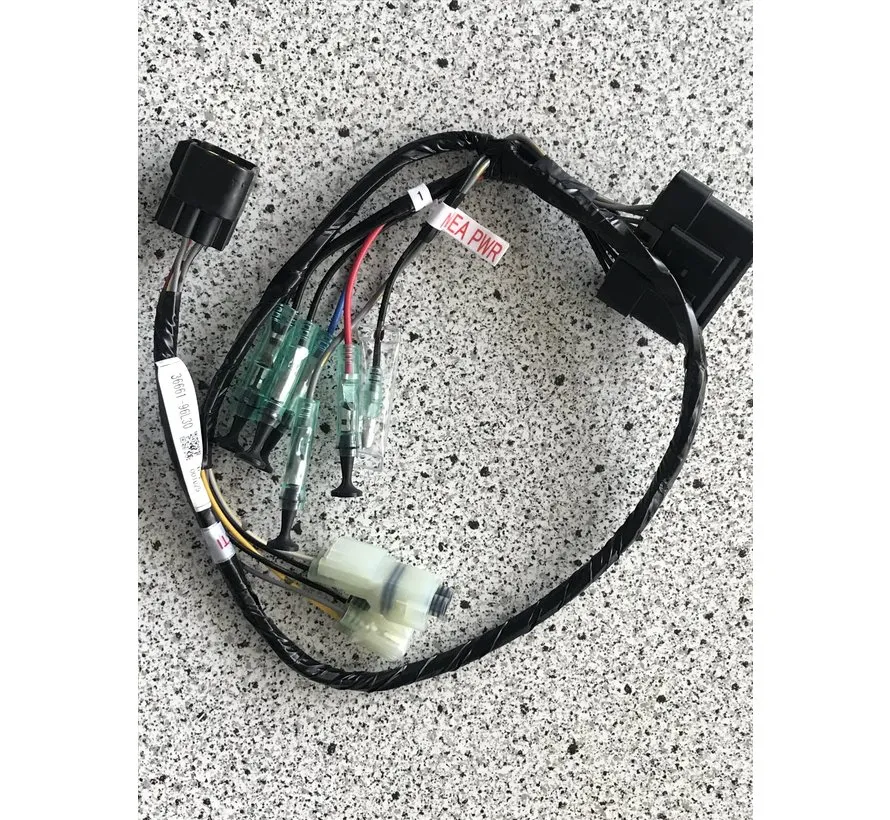

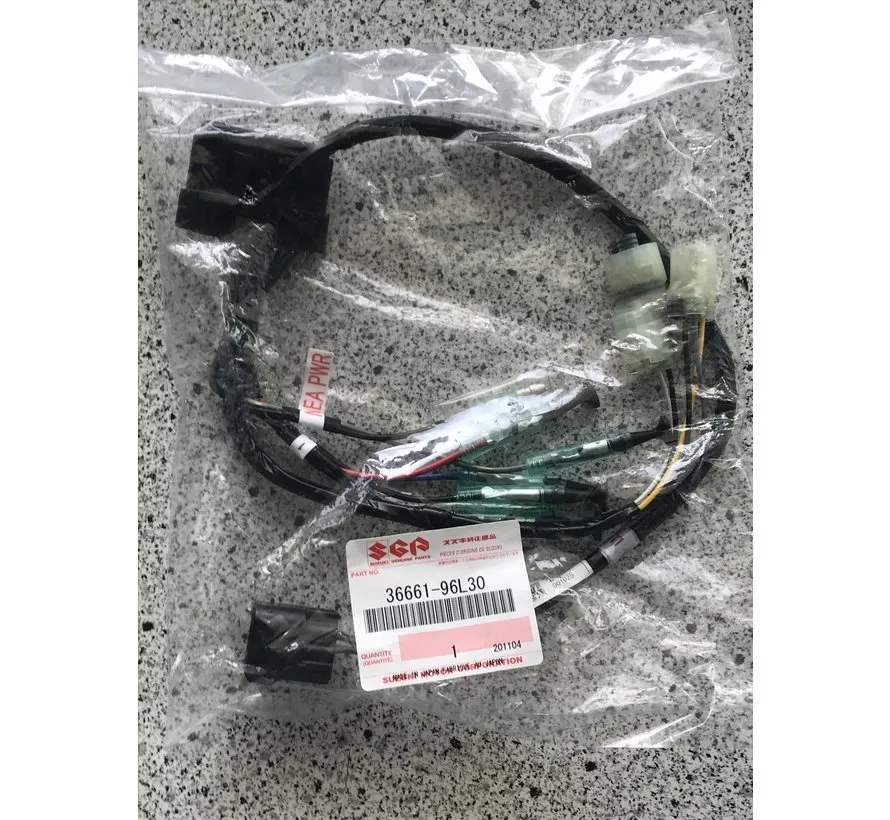

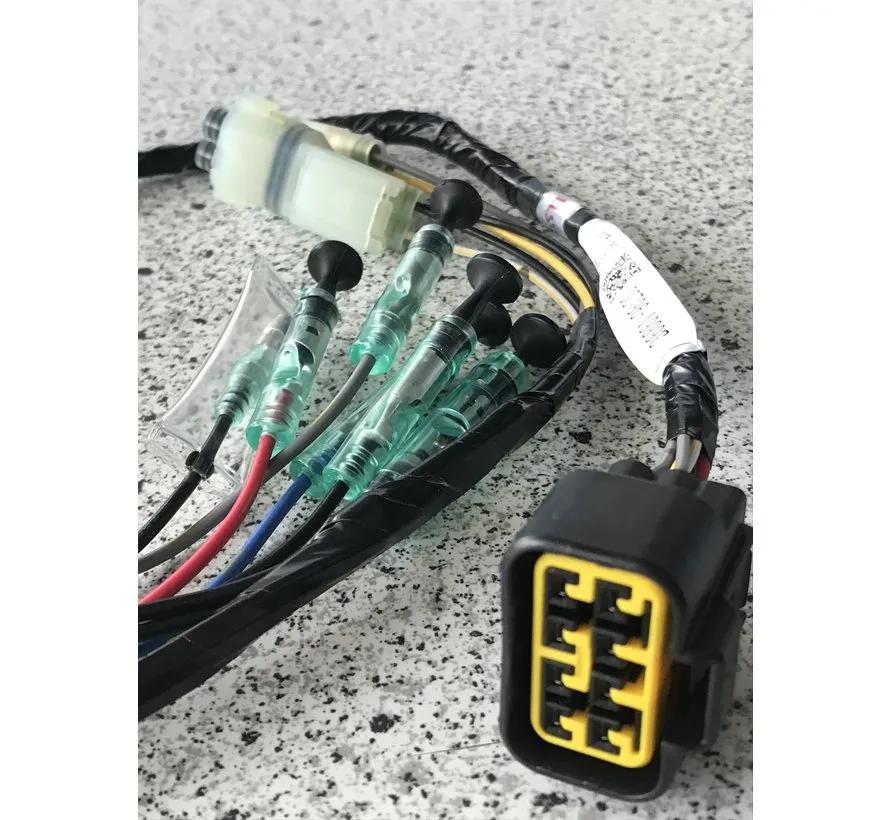

The Suzuki 36661-96L30 is a genuine gauge adapter used to connect a Suzuki digital multifunction gauge to a mechanically controlled outboard engine.
Suzuki officially identifies the part as the “Gauge Adapter (Mechanical Engines)” within its SMG/SMG4 rigging system.
For a single mechanically controlled engine installation, one 36661-96L30 adapter is used. Suzuki's twin-engine mechanical rigging diagram specifies two adapters, effectively one for each engine.
Key features
• Genuine Suzuki Marine component
• Digital multifunction gauge adapter
• Designed for mechanically controlled outboards
• Suitable for Suzuki SMG/SMG4 systems
• Suitable for single-engine installations
• Suitable for twin-engine installations
• One adapter per engine according to Suzuki rigging diagrams
• Part of the Suzuki Marine rigging system
• Gauge not included
• Complete NMEA 2000 network not included
Product specifications
• Brand: Suzuki Marine
• Manufacturer part number: 36661-96L30
• Full OEM number: 36661-96L30-000
• Product type: digital gauge adapter / wiring harness
• Suzuki description: Adapter Comp, Gauge
• Application: digital multifunction gauge with mechanical outboard control
• Mechanical engine support: yes
• SMG4 support: yes
• Current European SMG4 gauge: 34011-96L45
• Single-engine installation: 1 adapter required
• Twin-engine installation: 2 adapters required
• NMEA 2000: may form part of the complete SMG network installation
• Power: supplied through connected system
• Construction: wiring harness with model-specific connectors
• Cable length: no reliable separate official specification found
• Included: 1x Suzuki 36661-96L30 gauge adapter
• Not included: SMG4 gauge, network power cable, T-connectors, terminators or extension cables
• Check before ordering: verify engine model, model year/serial number, mechanical controls and installed SMG/SMG4 gauge
