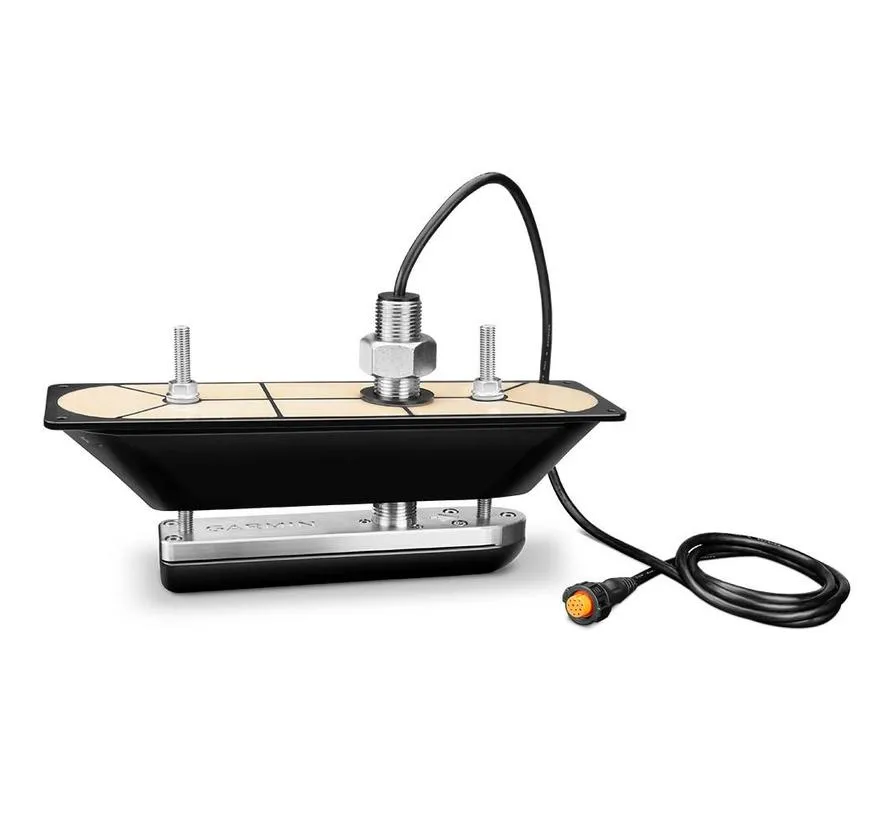

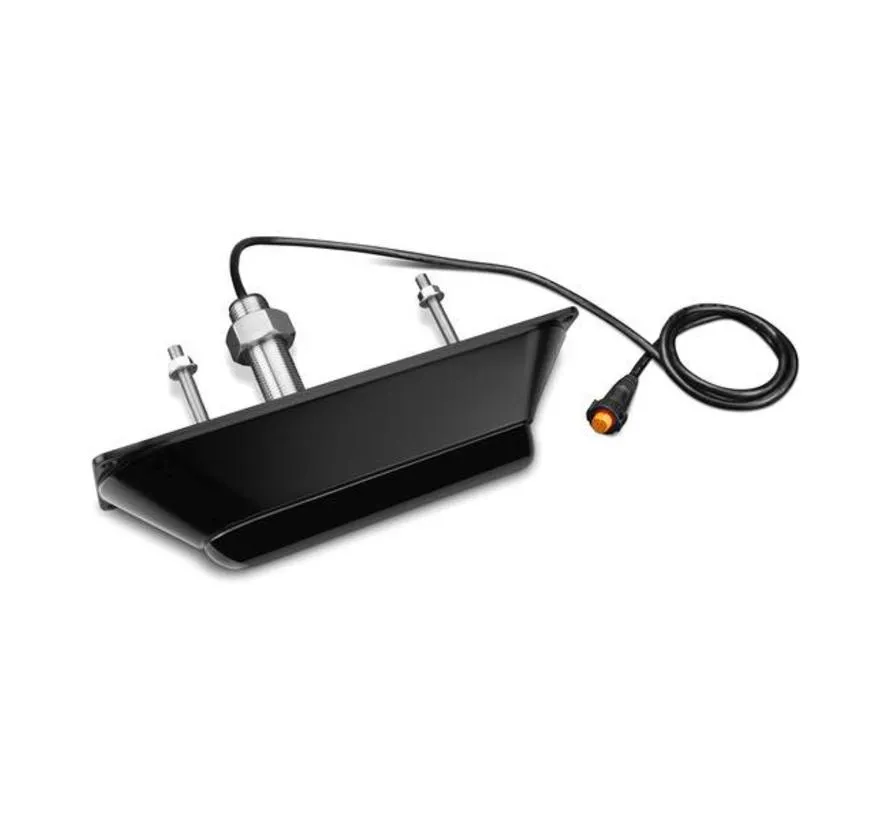

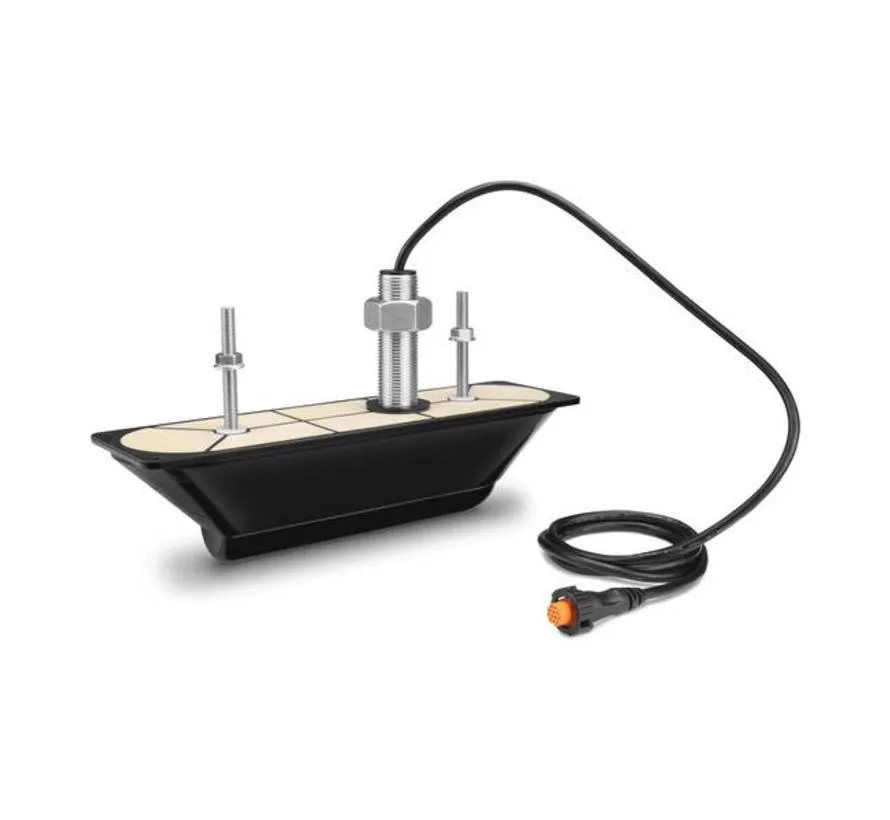

Add ultra-clear Ultra High-Definition ClearVü and SideVü scanning to your compatible chartplotter. Plug directly into GPSMAP 8600xsv or ECHOMAP Ultra, or use the GCV™ 20 sonar module for other compatible chartplotters. GT34UHD-TH features 3 arrays including a downward-facing element (UHD 800 kHz and UHD 1200 kHz) and supports depth plus water temperature.
Ultra High-Definition ClearVü
Brilliant clarity of structure and fish below the boat, leveraging the downward-facing element for strong target detail.
UHD SideVü
Crisp images of structure and fish to the sides, helping you scout an area quickly with clear first-pass results.
Specs (Garmin GT34UHD-TH, thru-hull)
- ClearVü UHD: 800 kHz (CHIRP 760–880 kHz)
- SideVü UHD: 1200 kHz (CHIRP 1060–1170 kHz)
- Power: 500 W
- Beamwidth: ClearVü 0.76° × 46°; SideVü 0.44° × 55°
- Max depth: ClearVü 200 ft (~61 m)
- Side range: 125 ft each side (~38 m), 250 ft total (~76 m) (specified at max depth 30 ft / ~9 m)
- Sensors: depth + temperature
- Connector: 12-pin
- Cable length: 20 ft (6 m)
- Recommended deadrise: up to 5°
