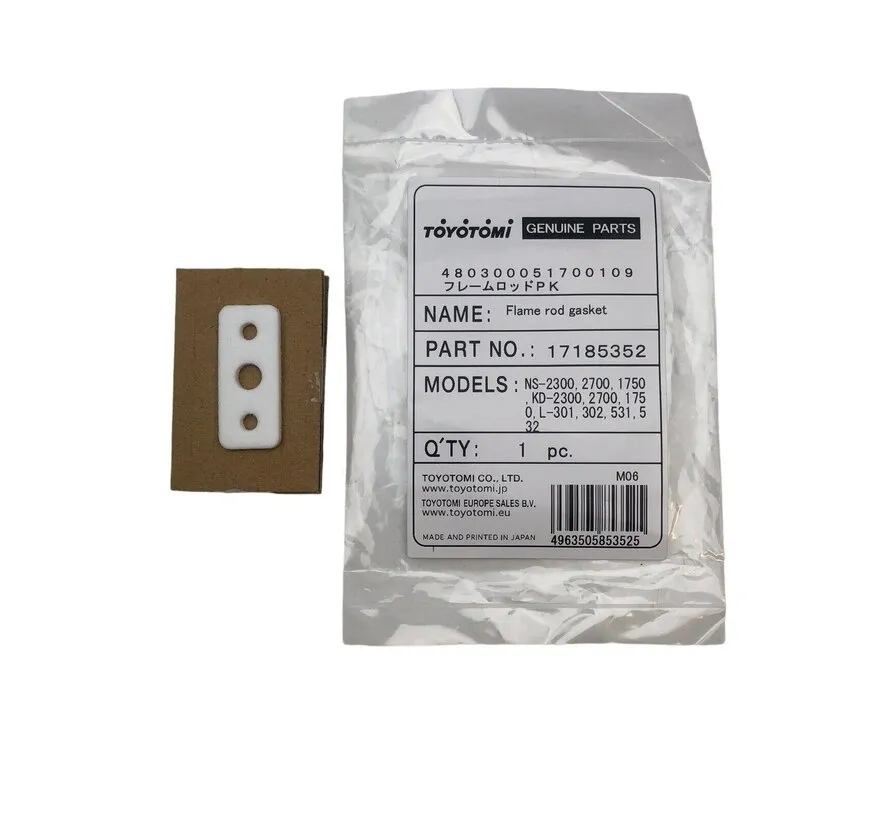

The Toyotomi flame rod gasket is an original replacement part for selected Toyotomi kerosene heaters in the NS, KD and L series.
The gasket is installed around the flame rod and provides a correct seal between the sensor and the surrounding burner or combustion chamber assembly.
Proper sealing helps prevent unwanted air leakage and supports reliable flame detection and stable combustion.
Whenever the flame rod is removed during servicing, the gasket should be inspected for damage, hardening or distortion. Replacement is recommended if the existing gasket is no longer in good condition.
Key features
- Original Toyotomi replacement part
- Gasket for flame rod
- Heat-resistant construction
- Provides correct sealing around the flame rod
- Supports reliable flame detection
- Suitable for maintenance and repair
- For selected NS, KD and L-series heaters
- Replace when damaged or distorted
- Supplied individually
- Original Toyotomi part made in Japan
Compatibility
Suitable for:
- Toyotomi NS-2300
- Toyotomi NS-2700
- Toyotomi NS-1750
- Toyotomi KD-2300
- Toyotomi KD-2700
- Toyotomi KD-1750
- Toyotomi L-301
- Toyotomi L-302
- Toyotomi L-531
- Toyotomi L-532
Product specifications
- Product type: flame rod gasket
- Function: sealing around the flame rod
- Material: heat-resistant gasket material
- Application: Toyotomi kerosene heaters
- Installation position: flame rod / burner assembly
- Compatibility: NS-2300, NS-2700, NS-1750, KD-2300, KD-2700, KD-1750, L-301, L-302, L-531 and L-532
- Original replacement part: yes
- Quantity: 1 piece
- Country of manufacture: Japan
- Included: 1x flame rod gasket
- Not included: flame rod, burner, heater or installation tools
- Compatibility advice: always check the exact heater model and original part number before ordering
- EAN: 4963505853525
