The Toyotomi Extension Pipe Kit M 17206012 is a genuine extension kit designed to increase the distance between a Toyotomi FF heater and the exterior wall flue.
The kit extends both the exhaust pipe and combustion air intake. The M version is suitable for an installation distance of approximately 650 to 1080 mm.
Specifications:
- Brand: Toyotomi
- Product type: extension pipe kit
- Version: M / Medium
- Part number: 17206012
- EAN: 4963505060121
- Installation length: approx. 650-1080 mm
- Application: Toyotomi FF heaters
- Function: extends exhaust and combustion air connections
- Installation: between heater and wall flue
- Genuine Toyotomi installation component

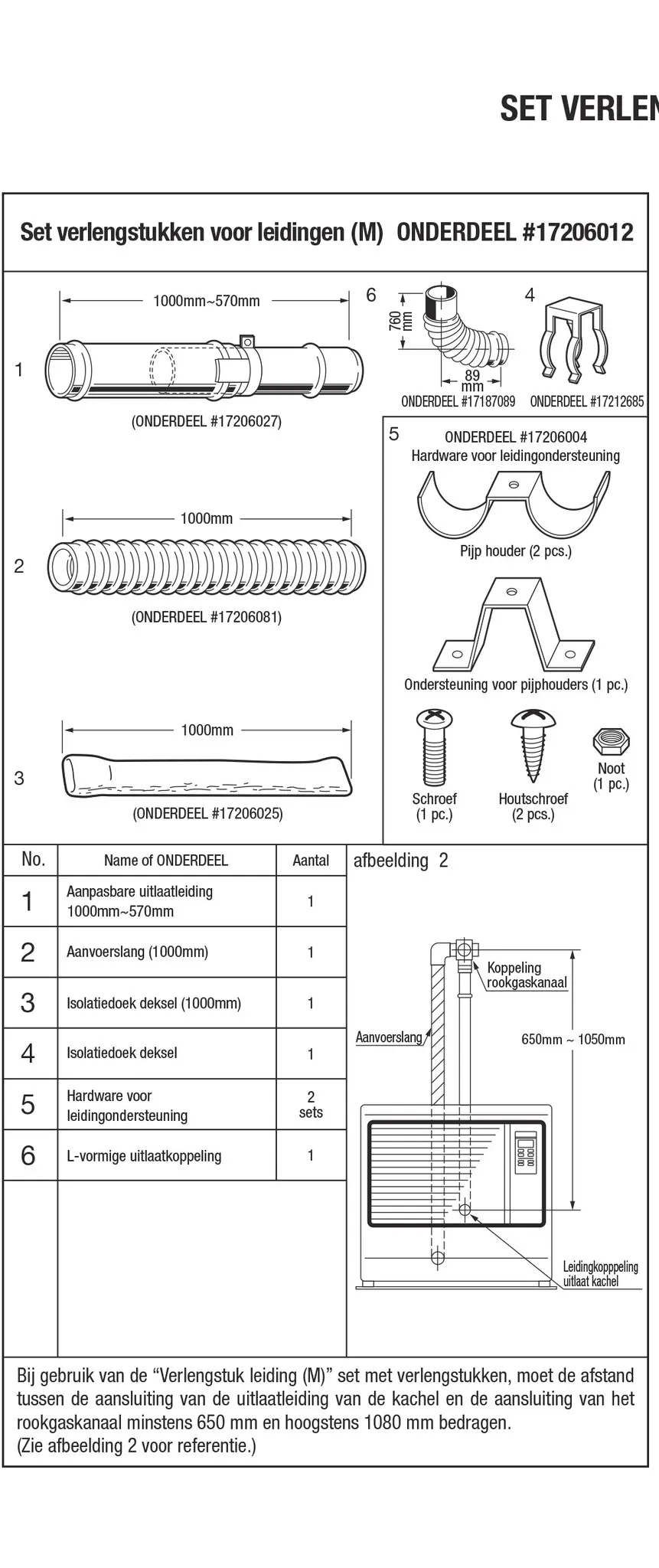

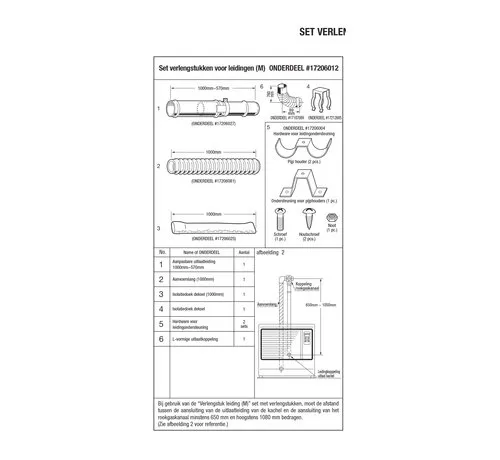

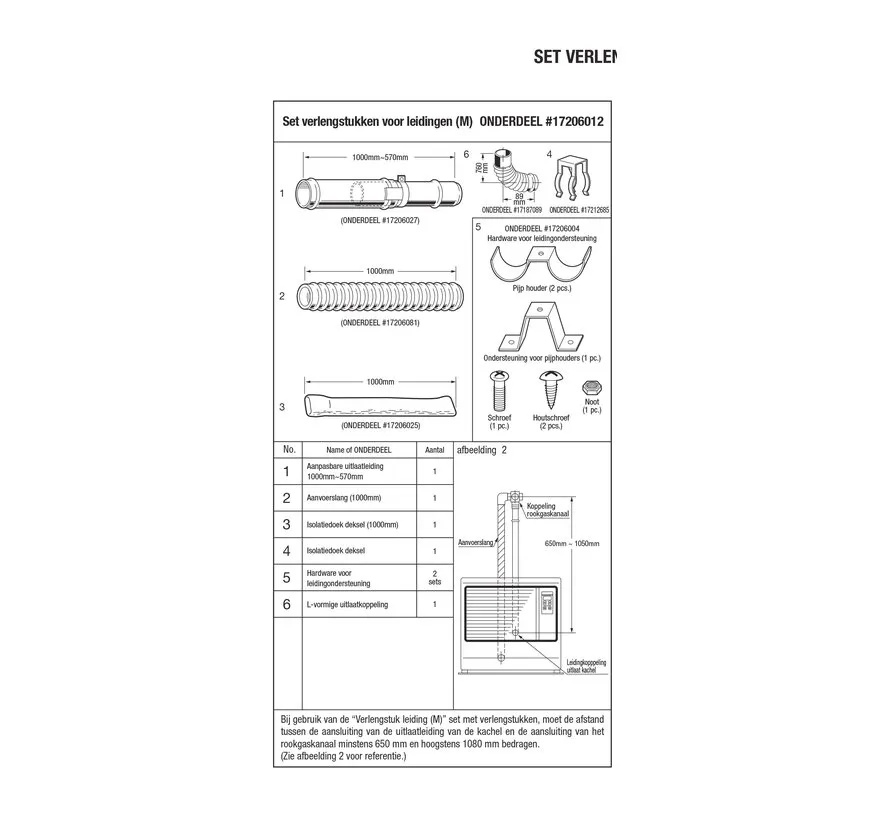

Kit contents:
- Adjustable exhaust pipe
- Adjustable range: approx. 570-1000 mm
- Approx. 1000 mm intake hose
- Approx. 1000 mm insulating cloth cover
- Pipe holder
- Pipe support and mounting hardware
- L-shaped exhaust joint for 90° connections
Compatibility includes:
- Toyotomi FF-V30
- Toyotomi FF-V30T
- Toyotomi FF-55
- Toyotomi FF-55T
- Toyotomi FF-95
Available Extension Pipe Kits:
- Kit S 17206011: approx. 400-580 mm
- Kit M 17206012: approx. 650-1080 mm
- Kit L 17206013: approx. 1620-2080 mm
Important:
- Medium M extension kit
- Wall flue is not included
- Heater is not included
- Maximum total extension length is approximately 3 metres
- Maximum of three 90° bends
- Use only with compatible Toyotomi FF heater installations
