The Toyotomi Extension Pipe Kit L 17206013 is a complete genuine extension kit designed to increase the distance between a Toyotomi FF heater and the exterior wall flue.
The kit extends both the exhaust system and combustion air intake and is designed for exposed surface installation inside the heated room.
Specifications:
- Brand: Toyotomi
- Product type: extension pipe kit
- Version: L / Large
- Part number: 17206013
- EAN: 4963505060138
- Installation length: approx. 1620-2080 mm
- Application: Toyotomi FF heaters
- Function: extends exhaust and combustion air connections
- Installation: exposed surface mounting
- Genuine Toyotomi installation accessory

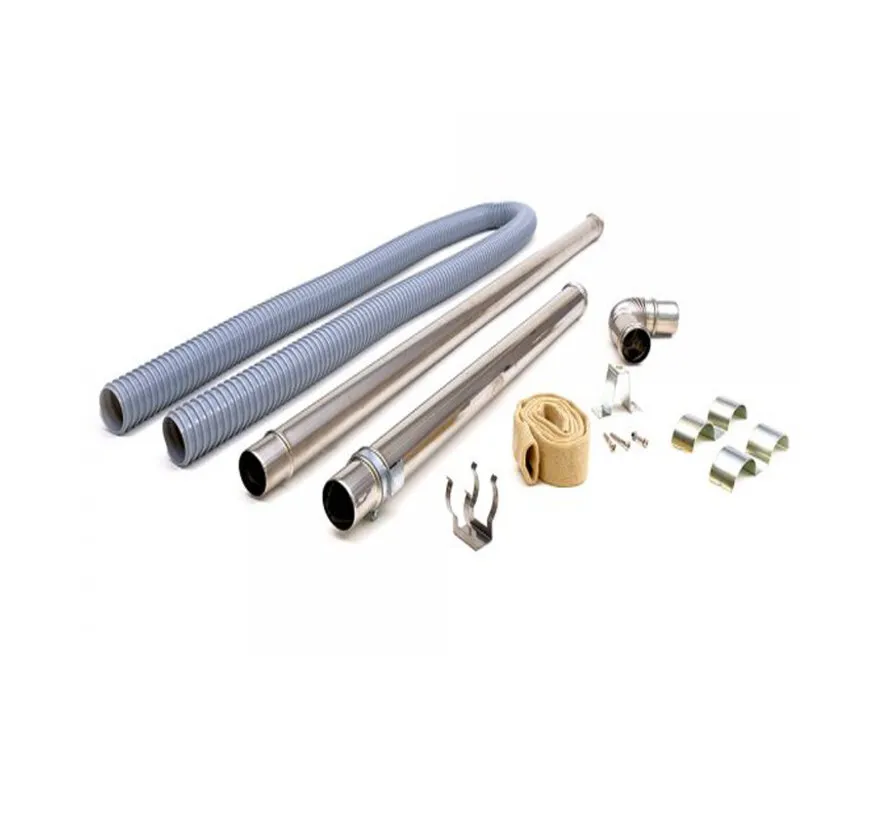

Kit contents:
- 1 x adjustable exhaust pipe L
- Adjustable exhaust pipe range: approx. 570-1000 mm
- 1 x 1000 mm exhaust extension pipe
- 1 x 2000 mm intake hose
- 2 x 1000 mm insulating cloth covers
- 2 x pipe holders
- 3 sets pipe support hardware
- 1 x L-shaped exhaust joint
Compatibility includes:
- Toyotomi FF-V30
- Toyotomi FF-V30T
- Toyotomi FF-55
- Toyotomi FF-55T
- Toyotomi FF-95
Important:
- Large L extension kit
- Wall flue is not included
- Heater is not included
- Extension pipes should remain exposed and accessible
- Do not conceal the extension pipes inside walls or building cavities
- Maximum total extension length is approximately 3 m
- Maximum three 90° bends
- Use only with compatible Toyotomi FF heater installations
