The Vetus EHPC12R2 is an electro-hydraulic pump for 12V installations where a higher oil flow is required than with the smaller models. This type C version is intended for light-duty pleasure craft and combines a compact housing with integrated valves and protection features. That makes it suitable for hydraulic applications where dependable and direct operation is important.
Specifications:
- electro-hydraulic pump
- supply voltage: 12V
- type: C
- capacity: 950 cm³/min
- integrated non-return valves
- by-pass valve
- maximum working pressure: 40 bar
- reservoir capacity: 0.2 litres
- current draw: approx. 10 to 15 A

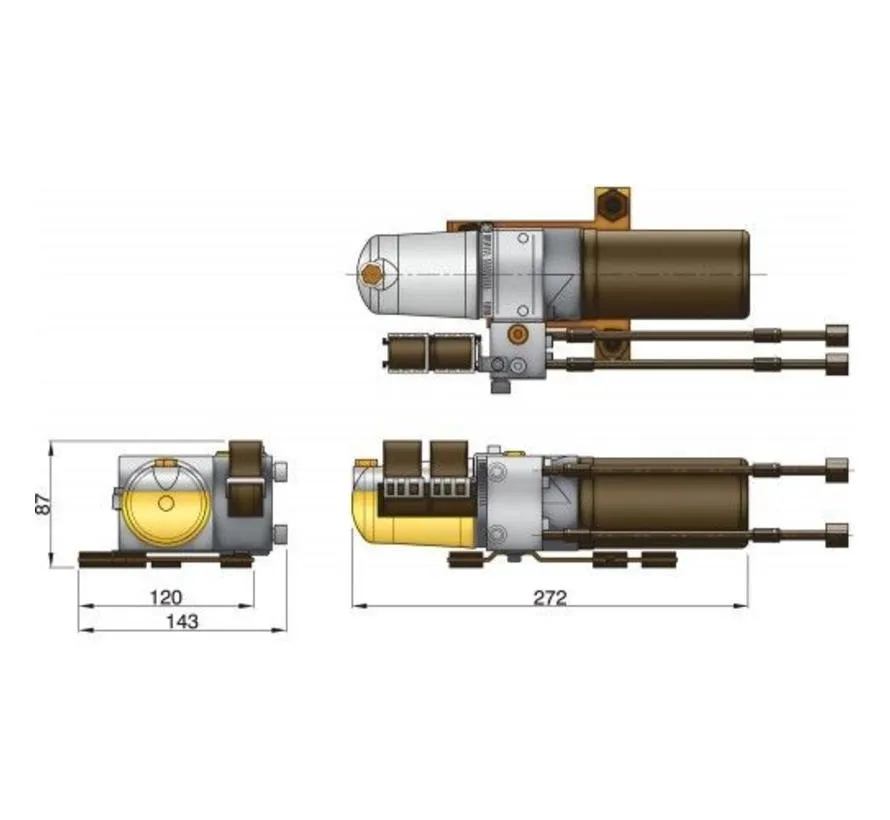

- dimensions: 272 x 143 x 87 mm
- supplied with 6 mm connections as standard
- suitable for light-duty pleasure craft
