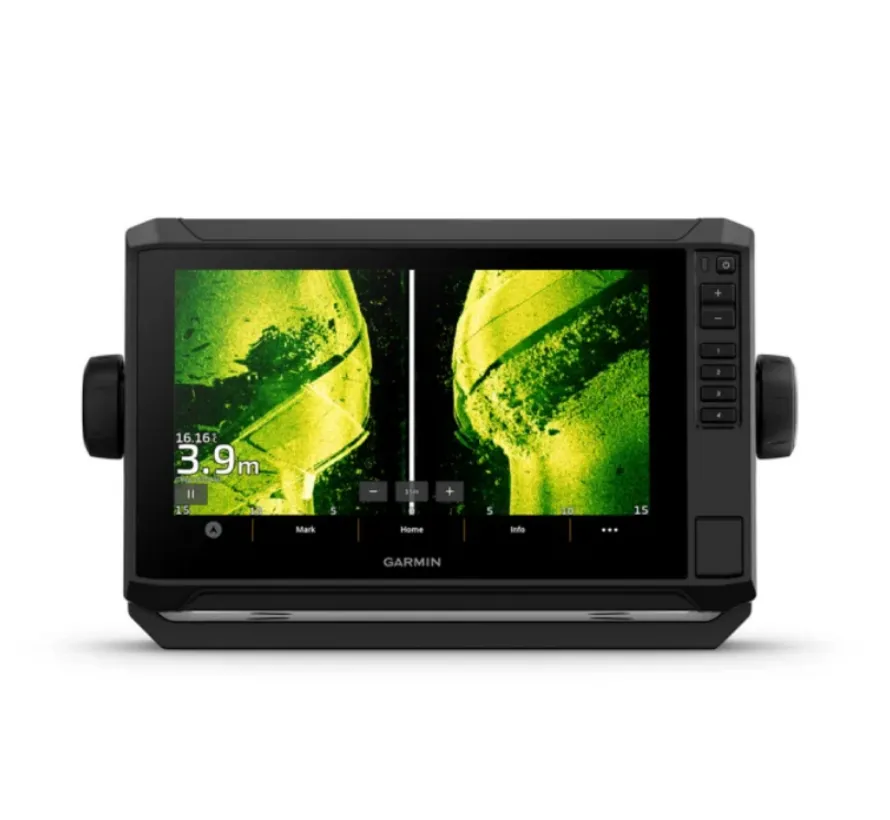

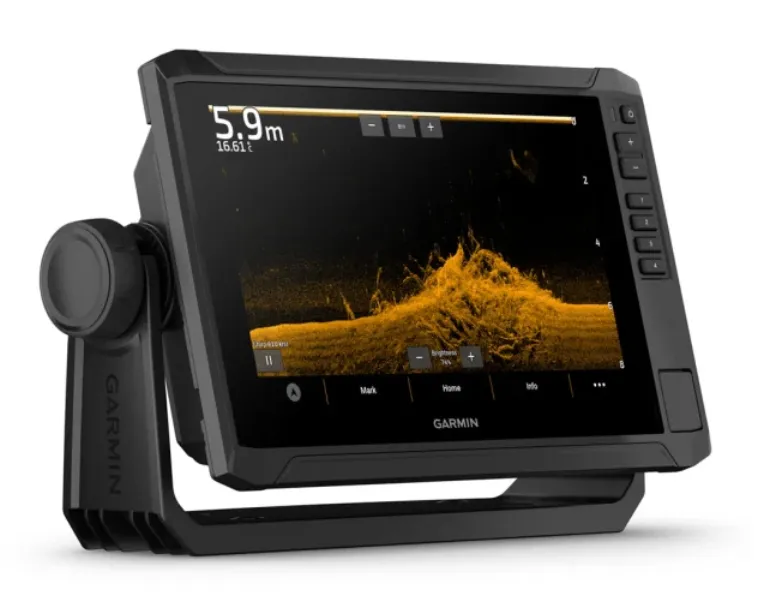

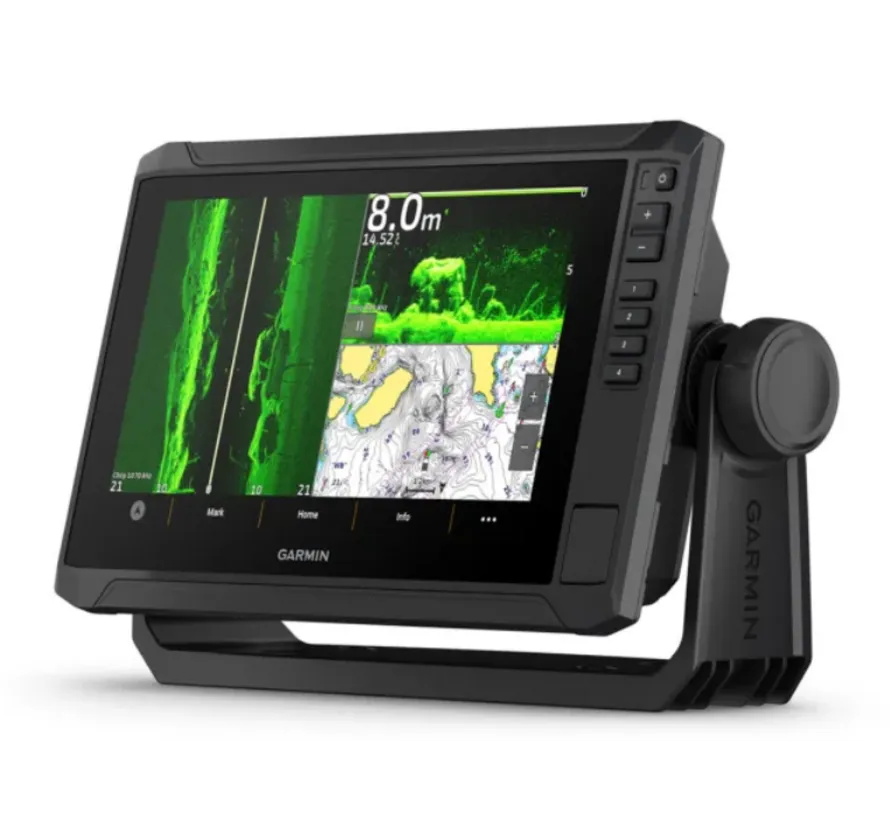

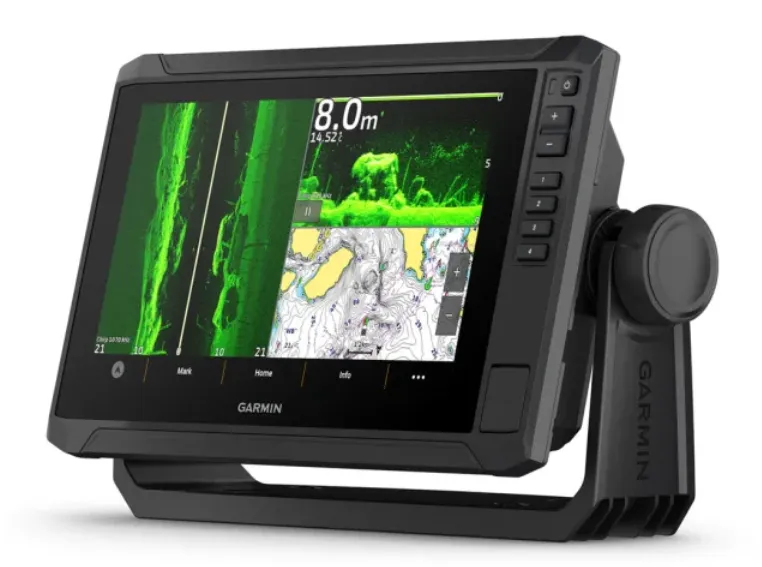

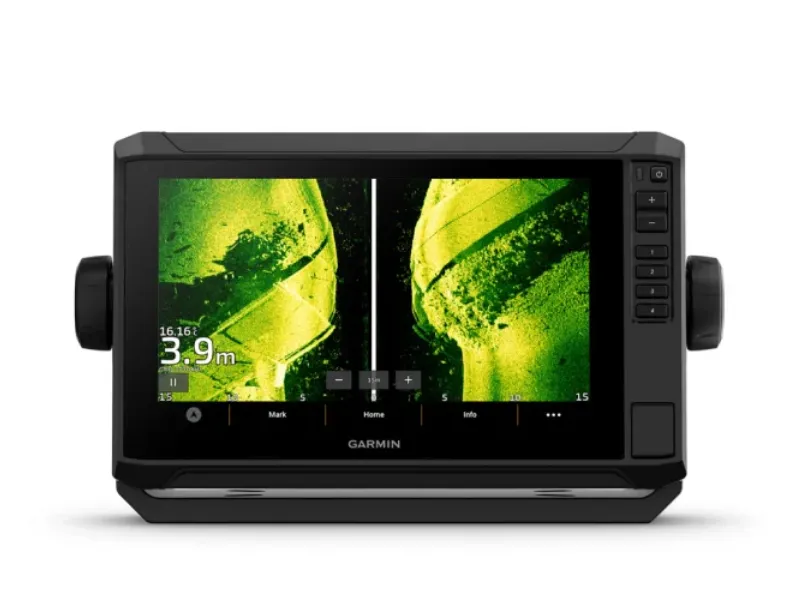

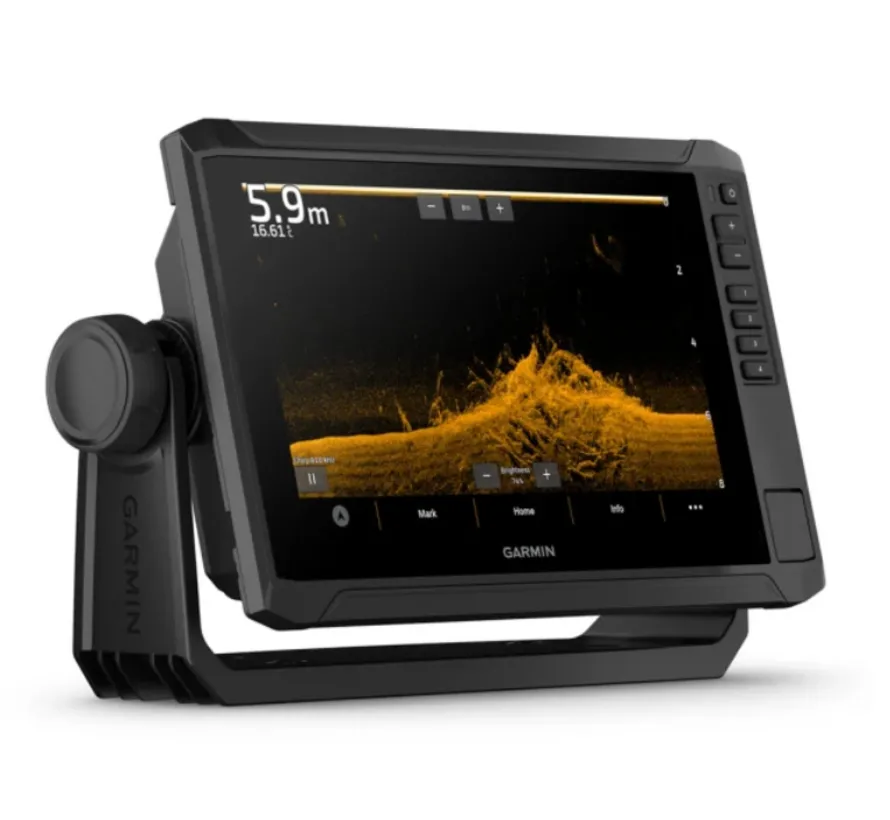

The Garmin ECHOMAP UHD2 92sv is a powerful 9-inch chartplotter and fishfinder featuring a touchscreen with additional physical control keys.
This product page combines two variants:
• 010-02687-00 – without transducer
• 010-02687-01 – including Garmin GT56UHD-TM transducer
The chartplotter specifications are identical for both versions. The difference is the included transducer.
The ECHOMAP UHD2 92sv supports Garmin traditional CHIRP, Ultra High-Definition ClearVü and Ultra High-Definition SideVü sonar. It can also be combined with compatible Garmin LiveScope systems.
NMEA 2000 connectivity allows compatible onboard equipment to be integrated. WiFi provides support for Garmin ActiveCaptain and wireless data sharing between compatible ECHOMAP UHD2 chartplotters.
Key features
• 9-inch colour display
• Touchscreen with physical keys
• 1024 × 600 pixel resolution
• Built-in GNSS receiver
• GPS, GLONASS, Galileo and BeiDou
• Multi-band GPS
• Traditional CHIRP sonar
• UHD ClearVü
• UHD SideVü
• LiveScope compatible
• NMEA 2000
• WiFi
• Garmin ActiveCaptain
• Garmin Quickdraw Contours
• Garmin Navionics+ support
• Garmin Navionics Vision+ support
• microSD card slot
• IPX7 water rating
• Bail or flush mounting
Product specifications
• Brand: Garmin
• Series: ECHOMAP UHD2
• Model: 92sv
• Product type: chartplotter / fishfinder
• Display size: 9 inches / 22.9 cm
• Display area: approximately 198 × 115 mm
• Display type: WSVGA, TN
• Resolution: 1024 × 600 pixels
• Touchscreen: yes
• Physical keys: yes
• Dimensions: approximately 264 × 166 × 80 mm
• Weight: approximately 1.3 kg
• Water rating: IPX7
• GPS: yes
• GLONASS: yes
• Galileo: yes
• BeiDou: yes
• GPS receiver: 10 Hz
• Multi-band GPS: yes
• NMEA 2000: yes
• NMEA 0183: no
• WiFi: yes
• Garmin ActiveCaptain: yes
• microSD card slots: 1
• Maximum microSD capacity: 32 GB
• Waypoints: 5,000
• Track points: 50,000
• Saved tracks: 50
• Routes: 100
• Traditional CHIRP: yes
• ClearVü: yes
• SideVü: yes
• LiveScope support: yes
• Input voltage: 9-18 V DC
• Typical current draw at 12 V: approximately 1.72 A
• Maximum current draw at 12 V: approximately 3.5 A
• Transducer connector: 12-pin
Variants
• 010-02687-00 – without transducer – EAN 0753759307950
• 010-02687-01 – with GT56UHD-TM – EAN 0753759307967
GT56UHD-TM specifications
• Traditional sonar: High Wide CHIRP
• Traditional CHIRP frequency: 150-240 kHz
• ClearVü/SideVü frequencies: 455, 800 and 1000 kHz
• Traditional CHIRP power: 350 W
• ClearVü/SideVü power: 500 W
• Maximum traditional sonar depth: approximately 244 m / 800 ft in freshwater
• Maximum ClearVü depth: approximately 122 m / 400 ft
• Maximum SideVü range: approximately 152 m / 500 ft
• Cable length: approximately 7.6 m / 25 ft
• Connector: 12-pin
• Depth: yes
• Water temperature: yes
• Speed: no
• Supported transom angle: 0-70°
• Dimensions without mount: approximately 218.5 × 51.8 × 27.7 mm
• Installation: transom or trolling motor
