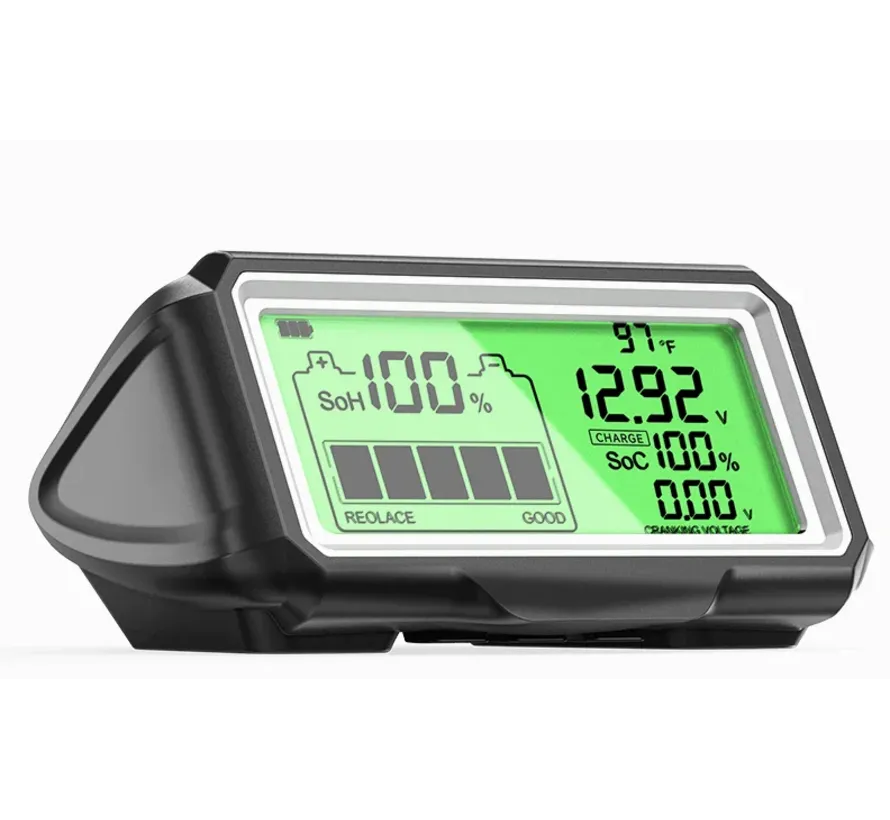

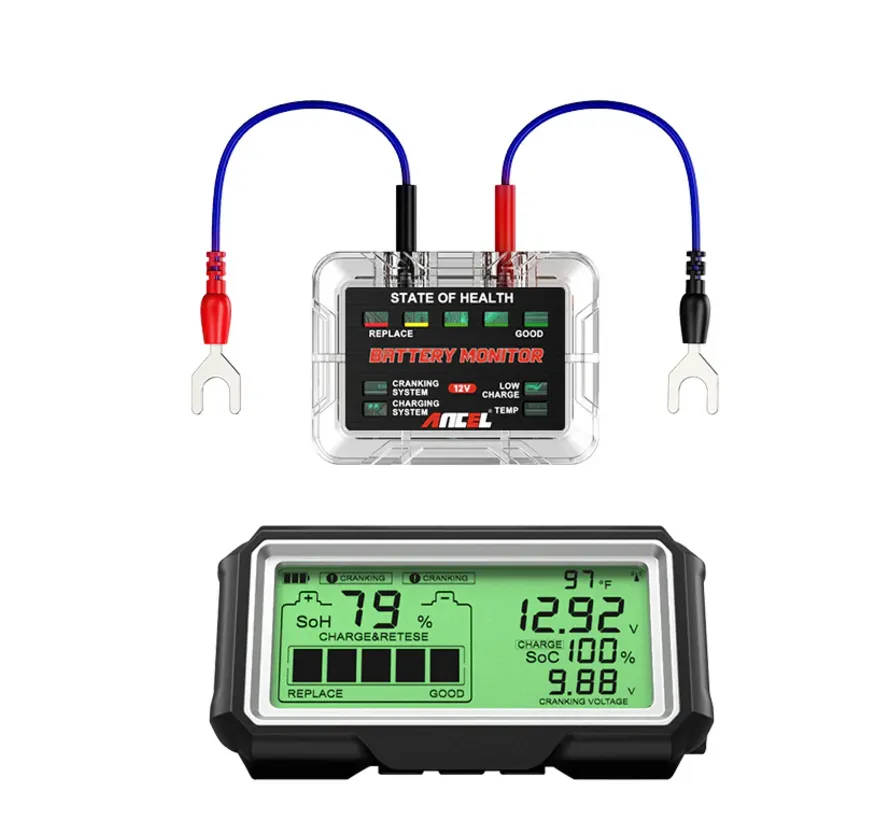

The Ancel BM200 Pro is a 12V battery monitor tester for continuous monitoring of a starter battery. The set consists of a host unit connected to the battery and a wireless display that shows the measured values inside the vehicle, camper, boat or wheelhouse.
The BM200 Pro uses 433 MHz RF transmission between the host unit and the display. No phone app is required for the basic display functions. The display shows real-time battery voltage, charge percentage, temperature, battery status, cranking test and charging test. In case of low voltage, low charge, abnormal temperature or starting/charging issues, the display provides a warning. Ancel describes the BM200 Pro as a 12V lead-acid battery monitor with wireless display unit.
Key features
- 12V battery monitor tester with wireless display
- For 12V lead-acid starter batteries
- Real-time battery voltage display
- Shows battery percentage, temperature and battery status
- Cranking test
- Charging system test
- Wireless 433 MHz RF transmission
- No phone app needed for basic display functions
- Alarm function for low voltage, low charge or abnormal temperature
- Warning for starting or charging system faults

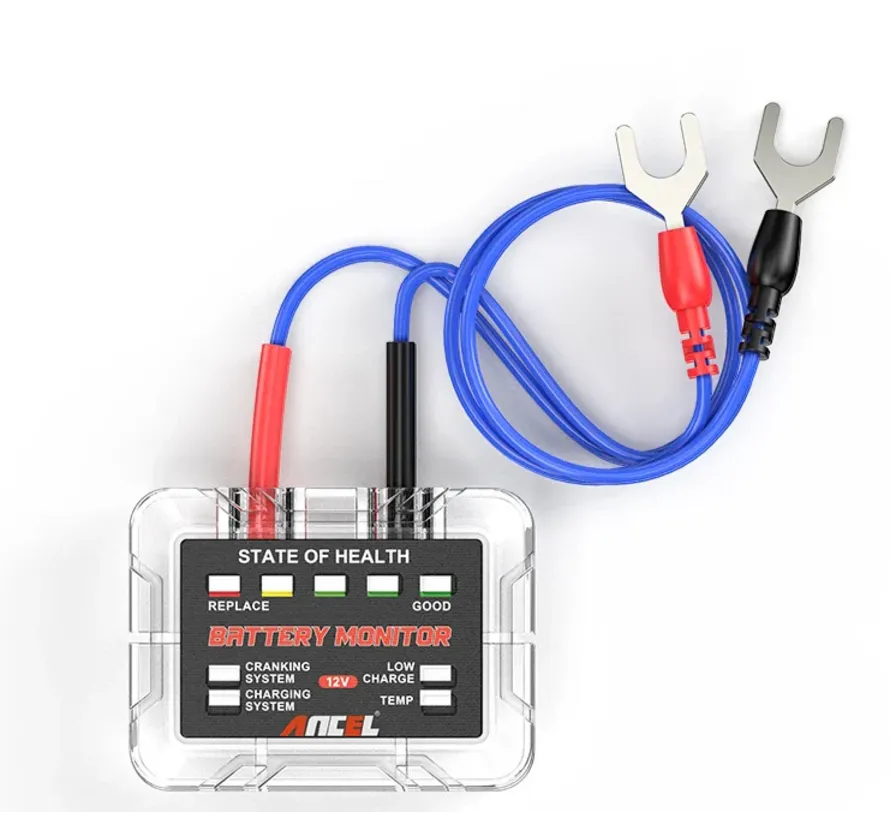

- Host unit for connection to the battery
- Wireless display unit for vehicle or wheelhouse installation
- Suitable for car, boat, camper, motorcycle, truck, ATV, SUV and yacht
Product specifications
- Brand: Ancel
- Model: BM200 Pro
- Product type: battery monitor tester / battery tester
- Battery system: 12V
- Battery type: 12V lead-acid starter battery
- Wireless connection: 433 MHz RF
- Components: host unit and wireless display
- Display values: voltage, charge percentage, temperature and battery status
- Test functions: cranking test and charging system test
- Alarms: low voltage, low charge, abnormal temperature, starting issue and charging system issue
- Display power: internal lithium battery according to manual information
- Application: car, boat, camper, motorcycle, truck, ATV, SUV, yacht and 12V onboard battery
- Not intended for: direct use on 24V systems
- Lithium / LiFePO4: use only when the supplier or manufacturer confirms this for the exact version
