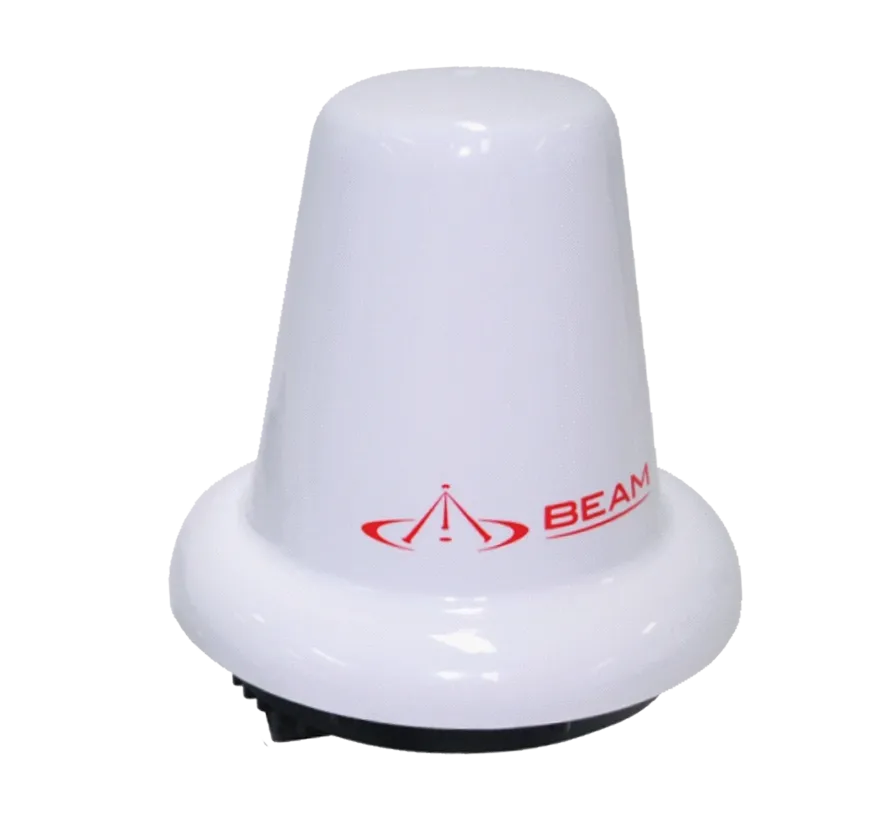

The Iridium Beam Active Antenna RST740 is an active Iridium antenna for installations where a standard passive antenna and short cable run are not sufficient. It is designed for land and marine applications where the antenna must be installed at a favourable location, such as on a mast, roof, deck or external antenna position.
The RST740 includes an integrated power amplifier for transmitting signals and a low-noise amplifier for receiving signals. This allows the antenna to be used with longer approved Beam Active Antenna cables. Beam and Iridium state that the antenna works with Beam products and Iridium devices, provided that the correct active antenna cable and power/breakout box are used.
Key features
- Active Iridium antenna for satellite communication
- Designed for long antenna cable runs
- Suitable for land and marine applications
- Works with Beam products and Iridium devices
- Requires approved Beam Active Antenna cable
- Supports cable runs up to approx. 100 m according to Iridium/Beam information
- Iridium frequency: 1616.0 - 1626.5 MHz
- Impedance: 50 Ohms
- Input voltage: 9-36 VDC
- DC peak power draw: 30 W
- DC RMS power draw: 3.2 W
- DC standby power draw: 0.32 W
- Omnidirectional antenna
- Suitable for pole or mast mounting
- Note: do not combine with standard passive Iridium cables
Product specifications
- Brand: Beam Communications
- Product name: Iridium Beam Active Antenna
- Model: RST740
- Product type: active Iridium satellite antenna
- Application: Iridium satellite communication
- Suitable for: Beam docks, Beam terminals and compatible Iridium devices
- Installation area: land, maritime, remote sites and in-building installations
- Frequency range: 1616.0 - 1626.5 MHz
- Antenna type: active / powered
- Amplification: integrated power amplifier and low-noise amplifier
- Direction: omnidirectional
- Impedance: 50 Ohms

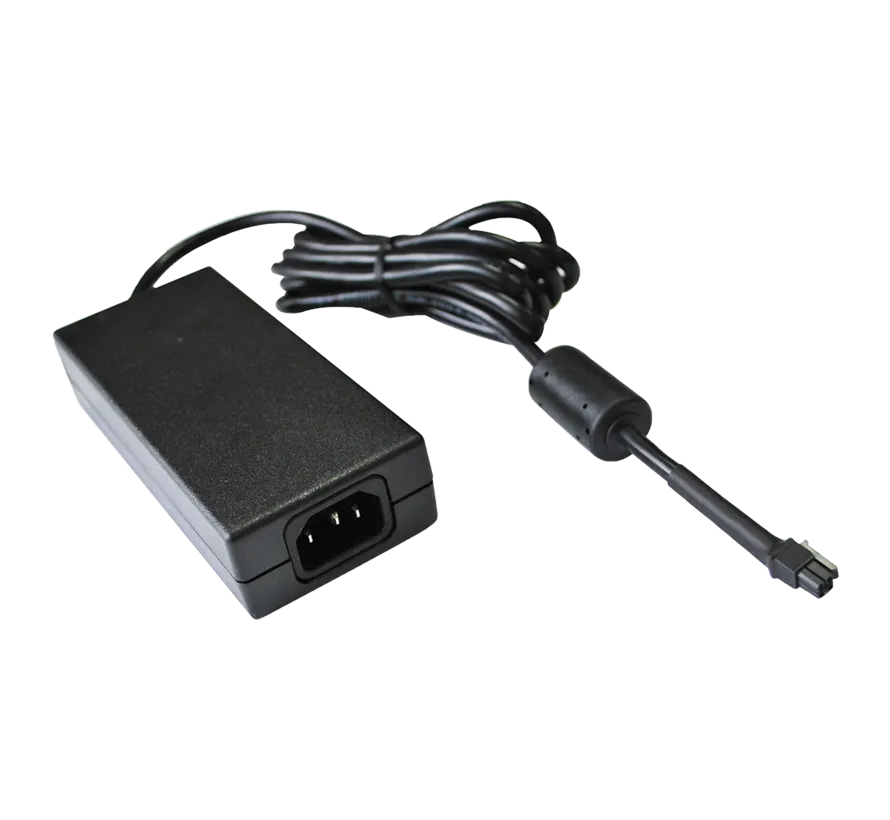

- Power supply: via power / breakout box
- Input voltage: 9-36 VDC
- DC peak power draw: 30 W
- DC RMS power draw: 3.2 W
- Standby power draw: 0.32 W
- Active antenna cable loss: 11.5 - 13.5 dB total end-to-end, according to brochure
- Maximum cable run: approx. 100 m, depending on approved cable set
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +80 °C

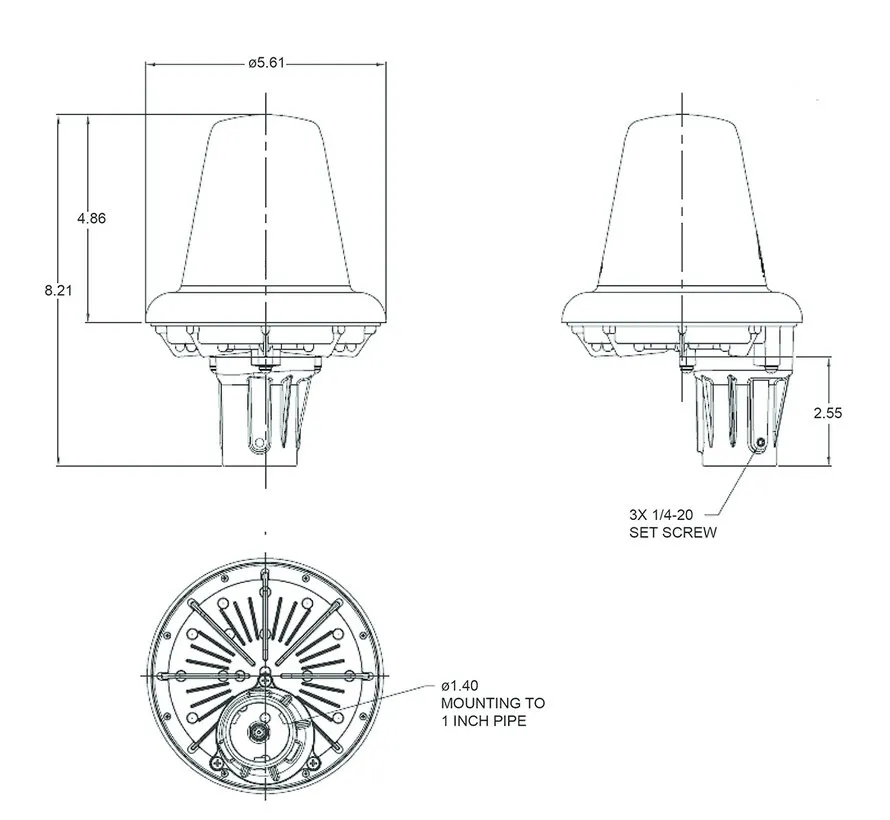

- Antenna dimensions: approx. 20.9 cm high x 14.2 cm diameter, depending on source
- Antenna weight: approx. 0.51 kg, depending on source

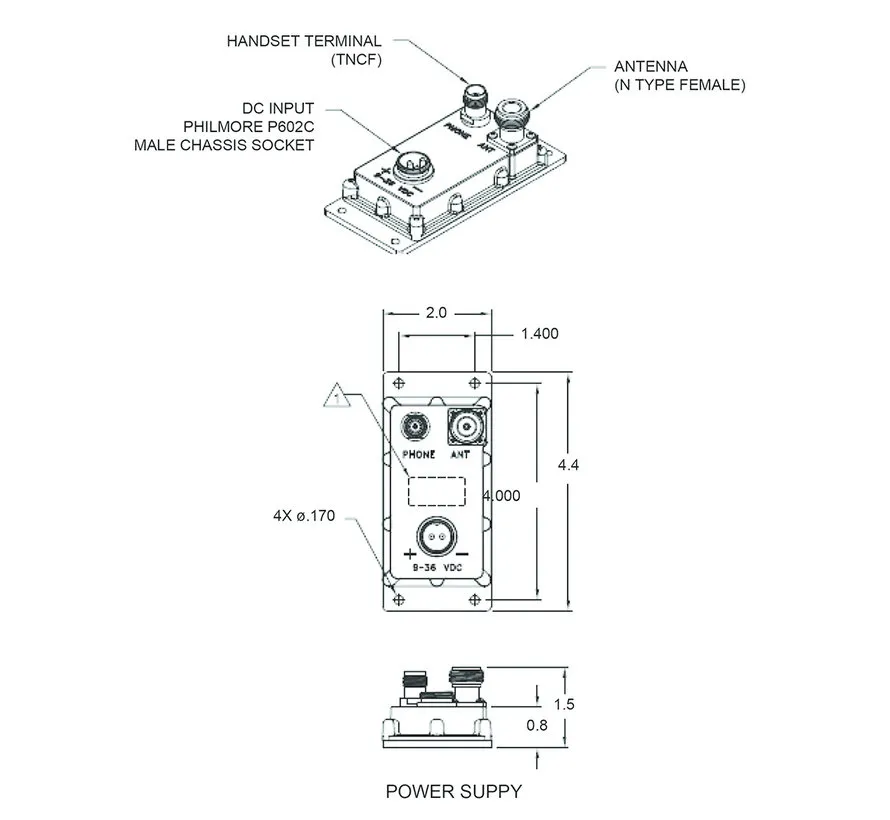

- Connector information: TNC/N-type via active cable and breakout box configuration, depending on cable set

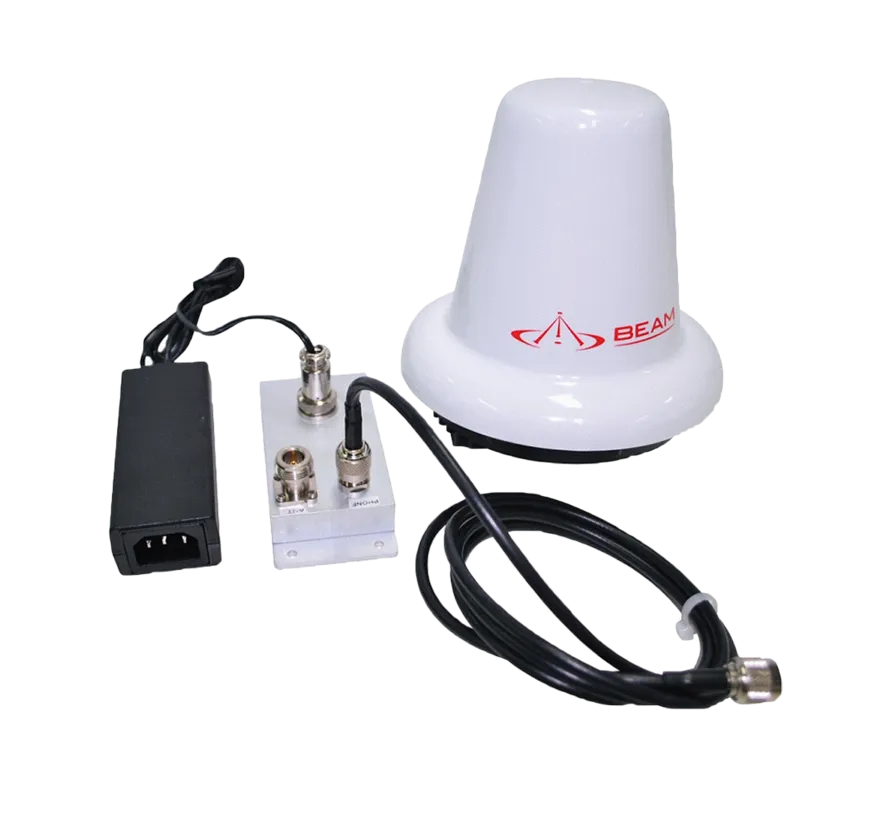

- Supplied with: active antenna and power breakout box according to supplier information
- Not included / check separately: approved active antenna cable set, mast bracket, terminal, Iridium device and installation cables
