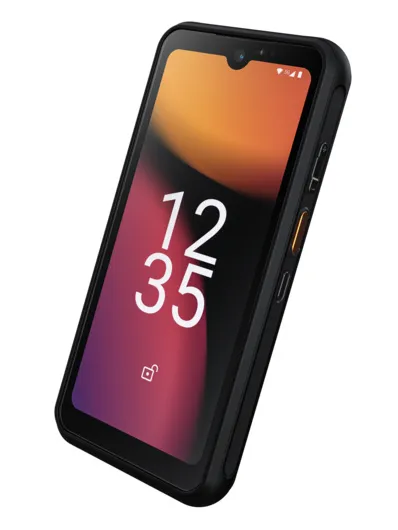

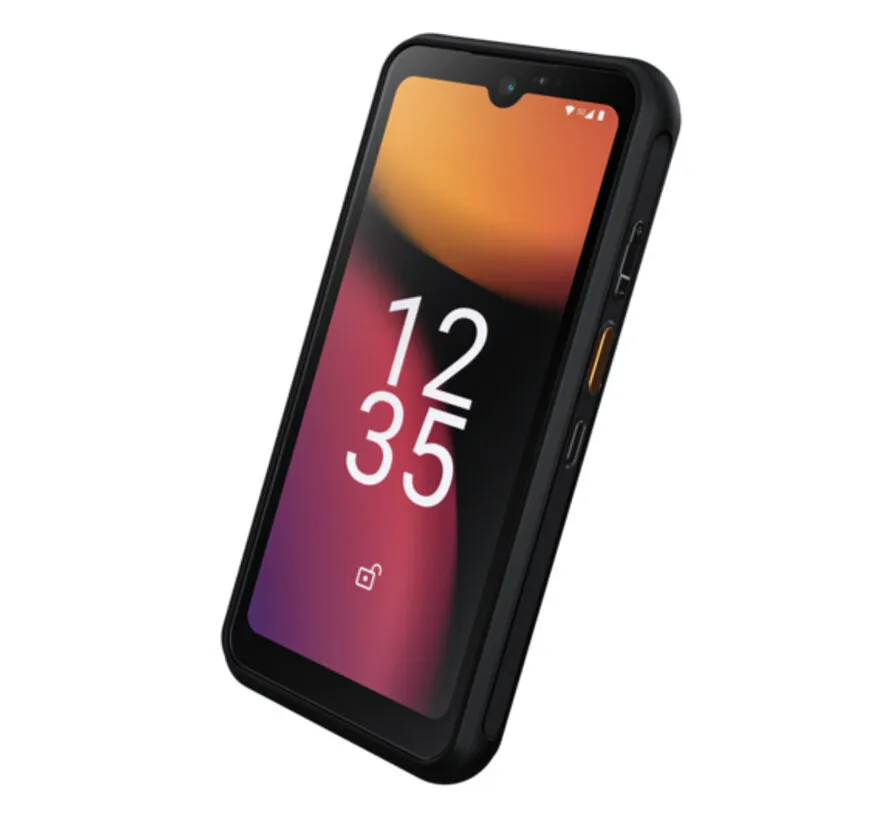

Bartec SP9EX2, 5G intrinsically safe smartphone for ATEX/IECEx Zone 2/22 and NEC Class I, II, III, Division 2.
This phone is currently the most compact explosion-proof 5G smartphone in the world and the ultimate intrinsically safe Android phone!
Features:
• Android 13TM
• 6.1" AMOLED
• 48 MP rear camera, 8 MP front camera
• 8 GB memory, 128 GB storage capacity
• Faster, future-proof wireless connections with WiFi 6 and 5G
Hardware Specifications
Processor: Qualcomm® QCM6490 Octa Core 2.7 GHz
Memory (RAM): 8 GB
Mass storage: 128 GB
Display: 6.1" AMOLED
Resolution: 1080 x 2340 pixels
Front glass: Gorilla® Glass Victus® (8th generation)
Touch function: Capacitive touch (stylus, bare or gloved fingertip input)
Dimensions (L x W x H): 168.7 mm x 83.4 mm x 17.9 mm (6.6 inches x 3.3 inches x 0.7 inches)
Weight (with battery): 350 g (0.77 lb)
Battery: Lithium-ion battery 3.68 V/4300 mAh (15.8 Wh)
Connectivity and network
SIM: Dual SIM (Nano SIM + eSIM)
Wireless connections: WiFi 6, 5G
Radio frequency band:
5G NR (Bands: 1-3, 5, 7, 8, 20, 25, 28, 38, 40, 41, 48, 66, 71, 77, 78)
LTE (Bands: 1-5, 7, 8, 12, 13, 17, 20, 28, 38, 40, 41, 48, 66, 71)
UMTS (Bands: 1, 2, 4, 5, 8)
GSM (Bands: 850, 900, 1800, 1900)
WLAN-WiFi: Wi-Fi 6 IEEE 802.11a/b/g/n/ac/ax, 2x2 MU-MIMO, Dual band Simultaneous (up to 2042 Mbps data rate and 160 MHz bandwidth)
Bluetooth: Bluetooth® 5.2 (including Low Energy long range and multiple broadcasts)
GNSS: GPS, A-GPS, Glonass, Galileo, and BeiDou
NFC: Reading/writing NFC tags (e.g., ISO 14443 Type A), contactless payments, and card emulation
Camera and sound
Rear camera: 48 MP with autofocus
Front camera: 8 MP
Voice and sound: Two microphones, Vibration alert, Speaker, Bluetooth wireless headset support, High-quality speakerphone
Notifications: Audible tone, multi-color LEDs, vibration
Additional features and accessories
Operating system: Android 13TM
Operating temperature: -20 °C to +50 °C (-4 °F to +122 °F)
Protection class (IEC 60529): IP68
External I/O: Charging pins, USB-C port
Sensors: Accelerometer/Gyroscope, Magnetometer/Compass, Pressure/Barometer, Proximity, Ambient light
Buttons: 1x on/off button, 2x programmable function buttons (for PTT, emergency call or other functions), 1x volume button (+/-)
Scope of delivery: BARTEC SP9EX1 Smartphone, Battery, Battery tool, USB-C cable, Quick start guide
ATEX:
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc IP 64
IECEx:
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc IP 64
NEC/CEC 500/505:
Class I, Div 2, Groups A, B, C and D
Class II, Div 2, Groups F and G
Class III, T4
Zone 2, AEx ic IIC T4 Gc
Zone 22, Aex ic IIIB T135° Dc
Ex ic IIC T4 Gc
Ex ic IIIB T135° Dc
