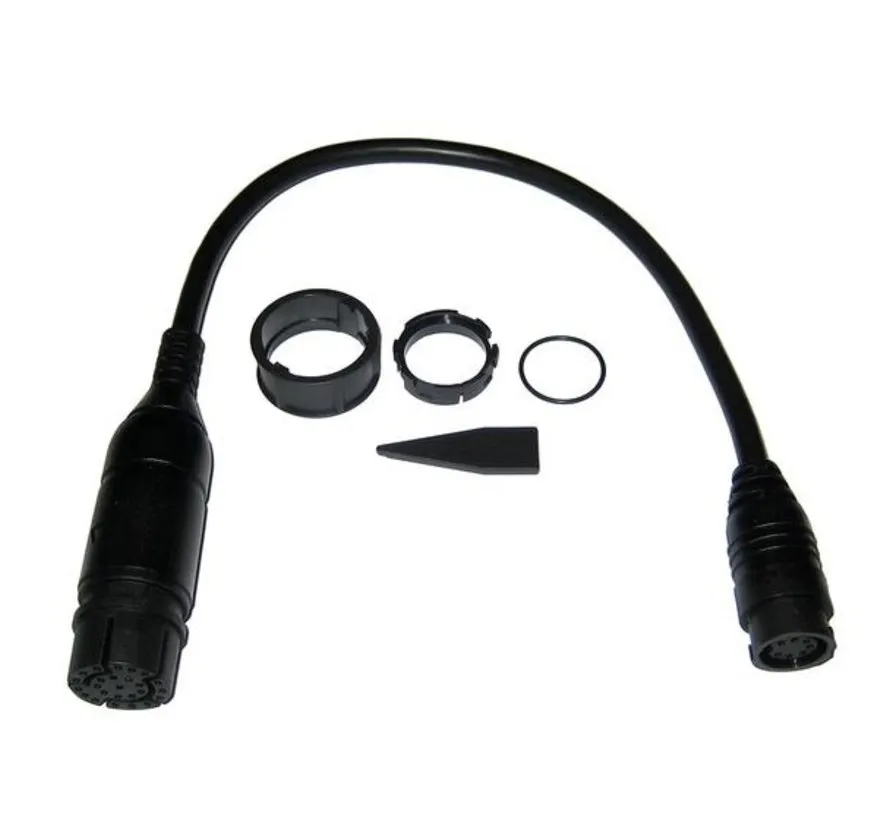

The Raymarine Axiom transducer adapter cable enables a suitable existing transducer to be connected to a compatible Raymarine Axiom multifunction display. This is practical when replacing or upgrading a chartplotter while retaining an installed Airmar, CP370, CPT-S or DownVision transducer.
This product combines the adapter cable versions for Axiom DV, Axiom RV and Axiom Pro RVX on one product page. Select the correct version before ordering, based on the display type and connector of the existing transducer.
Key features
- Adapter cables for Raymarine Axiom displays
- For connecting existing compatible transducers
- Versions for Axiom DV, Axiom RV and Axiom Pro RVX
- Suitable for selected Airmar, CP370, CPT-S and DownVision transducers
- Technical solution for display upgrades and reuse of installed transducers
- Connector version clearly selectable per option
- Suitable for marine sonar and depth-sounder installations
- Not a universal cable: check connector and transducer type before ordering
Product specifications
- Brand: Raymarine
- Product type: transducer adapter cable
- Application: connecting a compatible existing transducer to an Axiom display
- Use: onboard fishfinder, depth and sonar installations
- Colour: black
- Compatibility: depends on selected version and connected transducer
Available versions
- Axiom DV — A80484
- Connection: 9-pin to 7-pin
- For existing 7-pin Airmar / embedded transducers to Axiom DV
- Axiom DV — A80485
- Connection: 9-pin to 8-pin
- For existing 8-pin Airmar / CP370-style transducers to Axiom DV
- Axiom RV — A80488
- Connection: 25-pin to 7-pin
- For existing 7-pin Airmar / embedded transducers to Axiom RV
- Axiom RV — A80489
- Connection: 25-pin to 8-pin
- For existing 8-pin Airmar / CP370-style transducers to Axiom RV
- Axiom RV — A80490
- Connection: 25-pin to 9-pin
- For CPT-S or DownVision / CPT-1xx transducers to Axiom RV and suitable Axiom Pro displays
- Cable length: approx. 300 mm
- Axiom Pro RVX — A80496
- Connection: 11-pin to 8-pin
- For existing 8-pin Airmar / CP370-style transducers to Axiom Pro RVX
Selection advice
- Check the Raymarine display type: DV, RV or Pro RVX
- Check the connector on the existing transducer: 7-pin, 8-pin or 9-pin
- Check that the connected transducer is supported by the relevant Axiom display
- Select only the adapter version matching both the display and transducer
