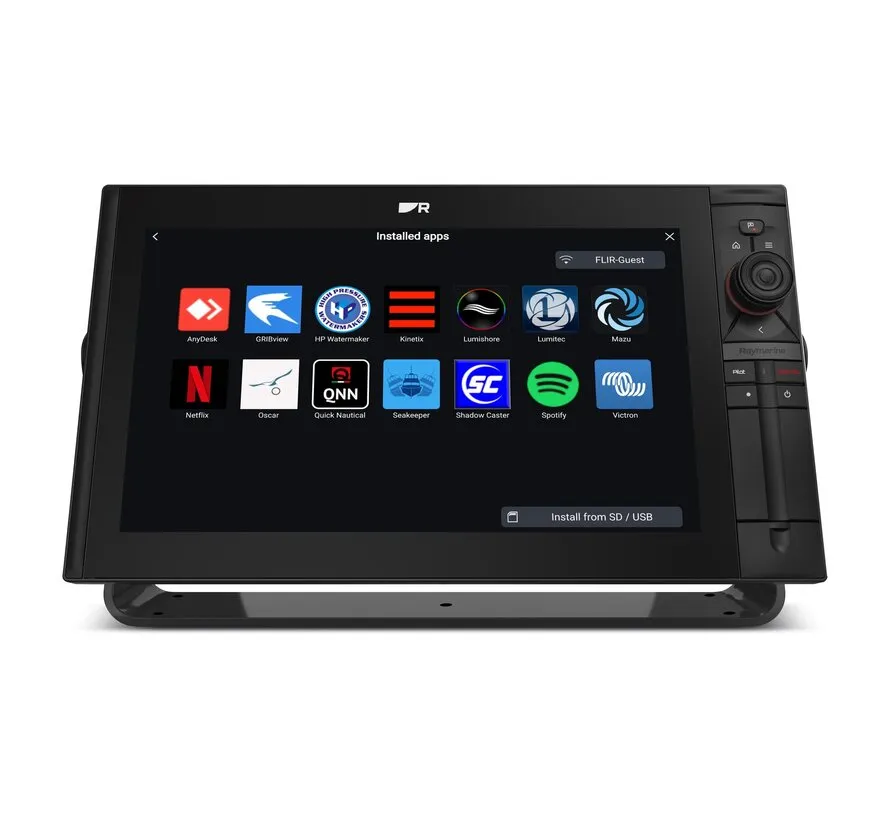

The Raymarine Axiom 2 Pro 16 S is a 16-inch multifunction chartplotter designed for sailing yachts, motor yachts and professional marine applications.
Its Full HD IPS display combines responsive touchscreen operation with physical HybridTouch controls, providing reliable access to navigation functions in demanding marine conditions.

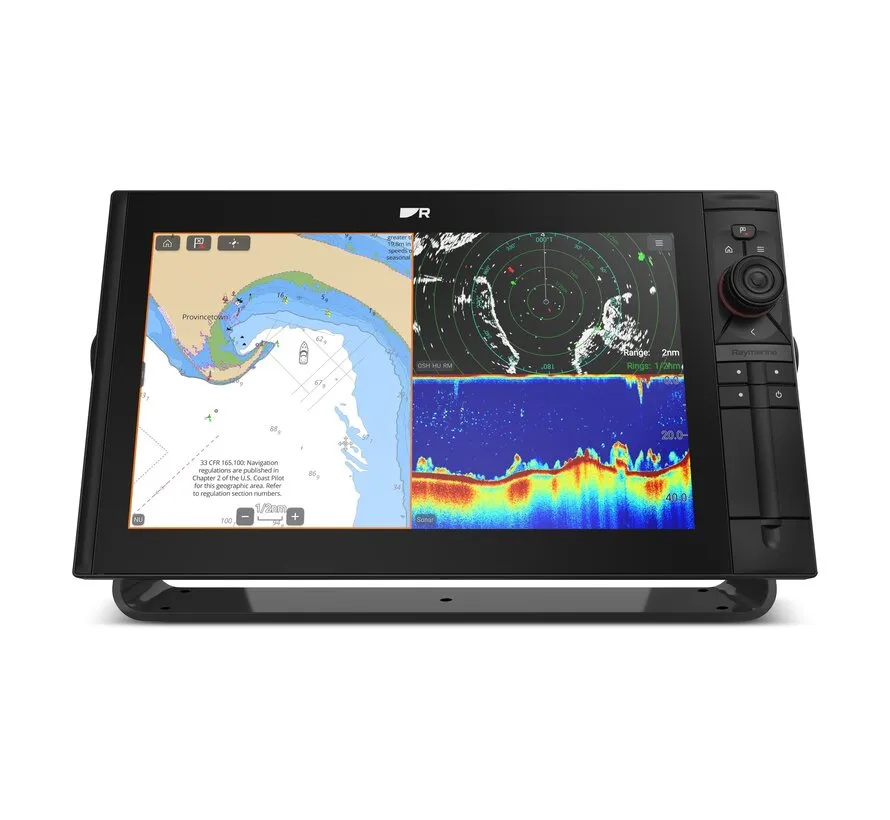

The powerful 6-core processor supports integrated navigation, radar, AIS, autopilot control, video and marine networking through the LightHouse operating system.
An integrated High CHIRP sonar module provides traditional depth and fish detection when connected to a suitable optional transducer.
Display and performance
-
Brand: Raymarine
-
Model: Axiom 2 Pro 16 S
-
Part number: E70657
-
Product type: multifunction chartplotter
-
Screen size: 16-inch class (15.6-inch active LCD)
-
Display: IPS
-
Resolution: 1920 × 1080 Full HD
-
Brightness: 1200 nits
-
Aspect ratio: 16:10
-
Viewing angle: 88° in all directions
-
Controls: HybridTouch 2 touchscreen and physical keypad
-
HydroTough water-repellent screen coating
-
Processor: 6-core
-

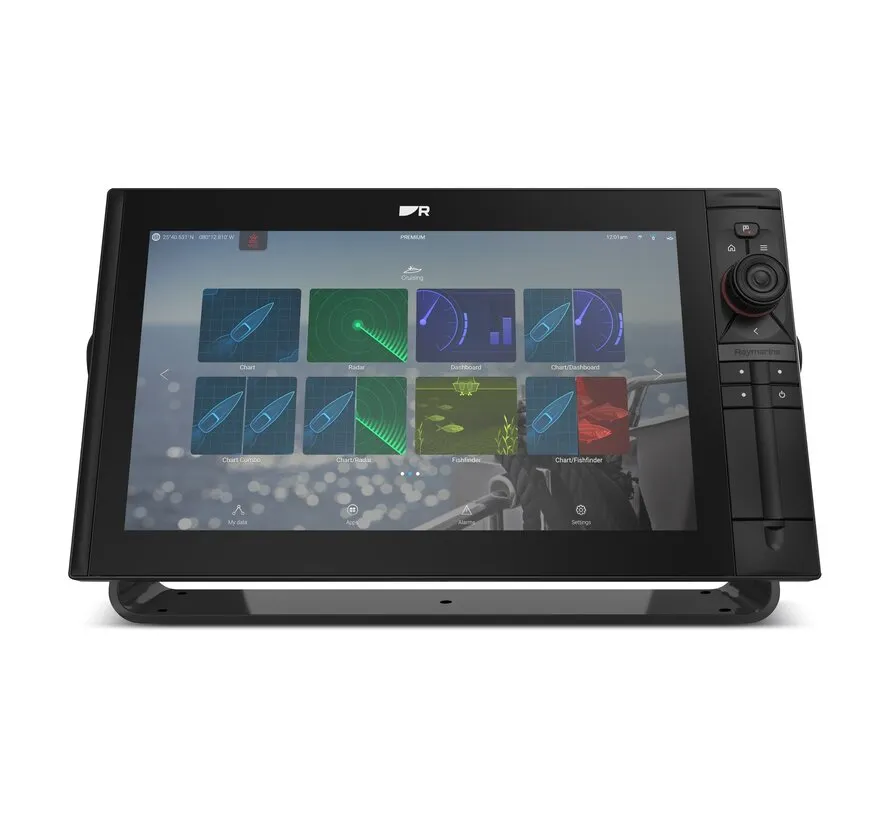

Operating system: LightHouse
Navigation and sonar
-
Integrated GNSS receiver
-
GPS, GLONASS, Galileo and BeiDou
-
SBAS support
-
Compatible with LightHouse Charts
-
Supports Navionics+ and Navionics Platinum+
-
Built-in High CHIRP sonar
-
Maximum sonar depth: approximately 274 m, depending on transducer and conditions
-
Transducer connection: 25-pin RealVision type
-
CPT-S transducers require A80490 adapter cable
-
Transducer included: no

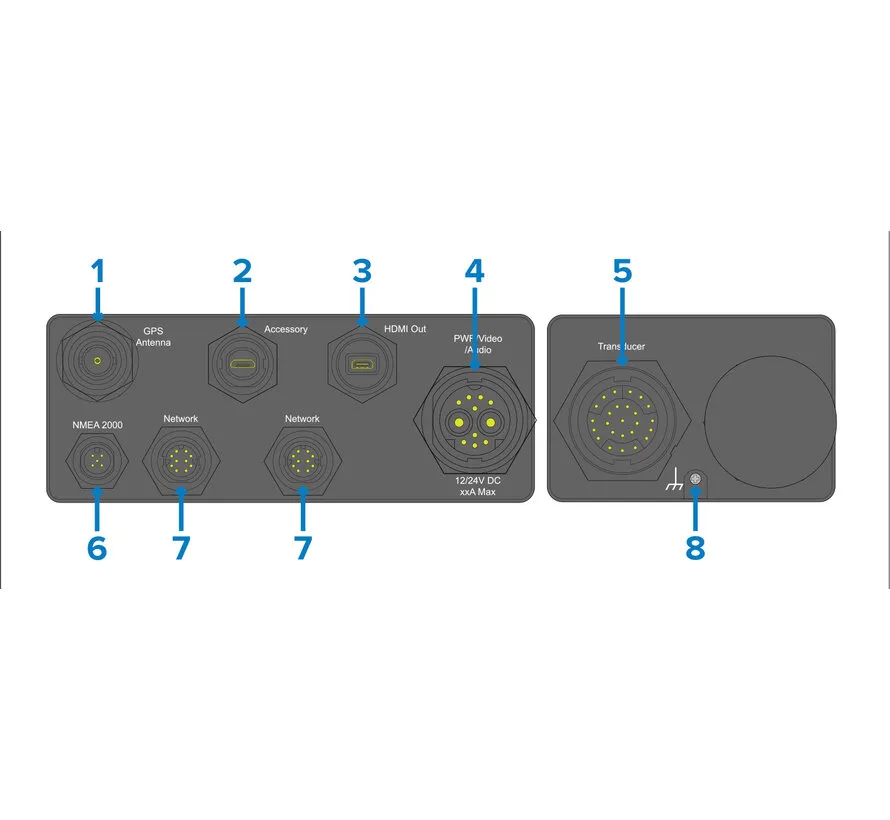

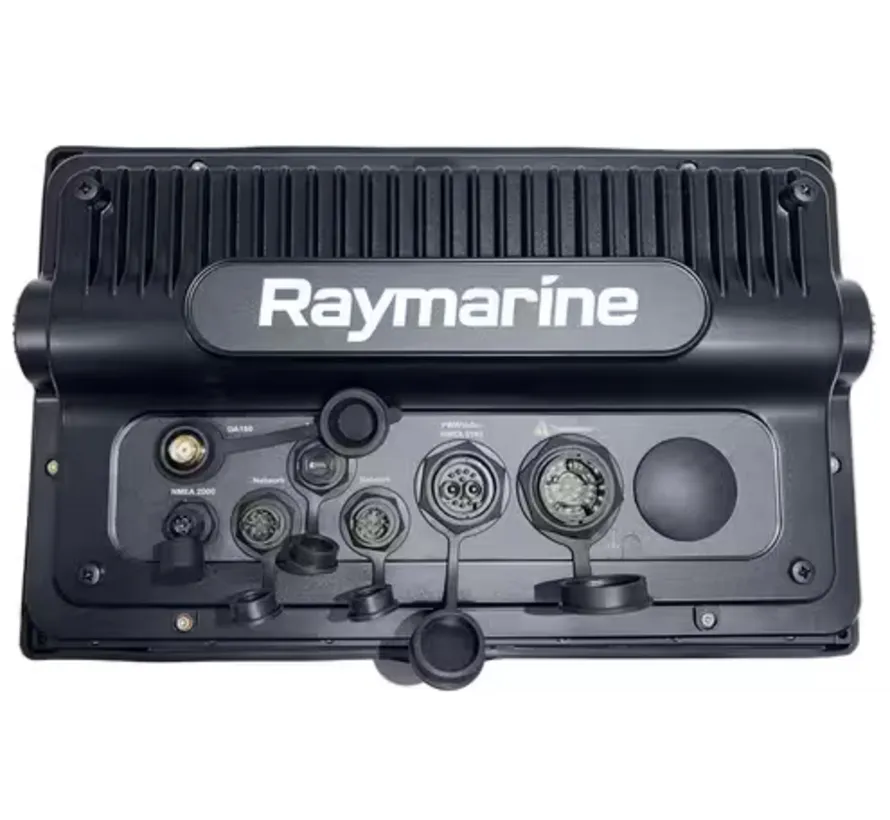

Networking and connectivity
-
NMEA 2000: DeviceNet connection
-
SeaTalkNG: via included adapter
-
RayNet Ethernet: 2 × Gigabit ports
-
WiFi: 2.4 GHz and 5 GHz
-
Bluetooth: version 4.0
-
USB: Micro-B
-
HDMI output: Micro-HDMI Type D
-
Analogue video input: BNC via power cable
-
Audio connections: RCA via power cable
-
External GPS antenna: TNC connector
-
Internal storage: 64 GB
-
Memory expansion: 2 × front-accessible microSDXC slots
-
NMEA 0183: optional via suitable interface
Compatible system expansions
-
Raymarine Quantum and compatible Cyclone radar
-
Raymarine Evolution autopilot systems
-
AIS receivers and transponders
-
FLIR thermal imaging cameras
-
CAM300 marine cameras
-

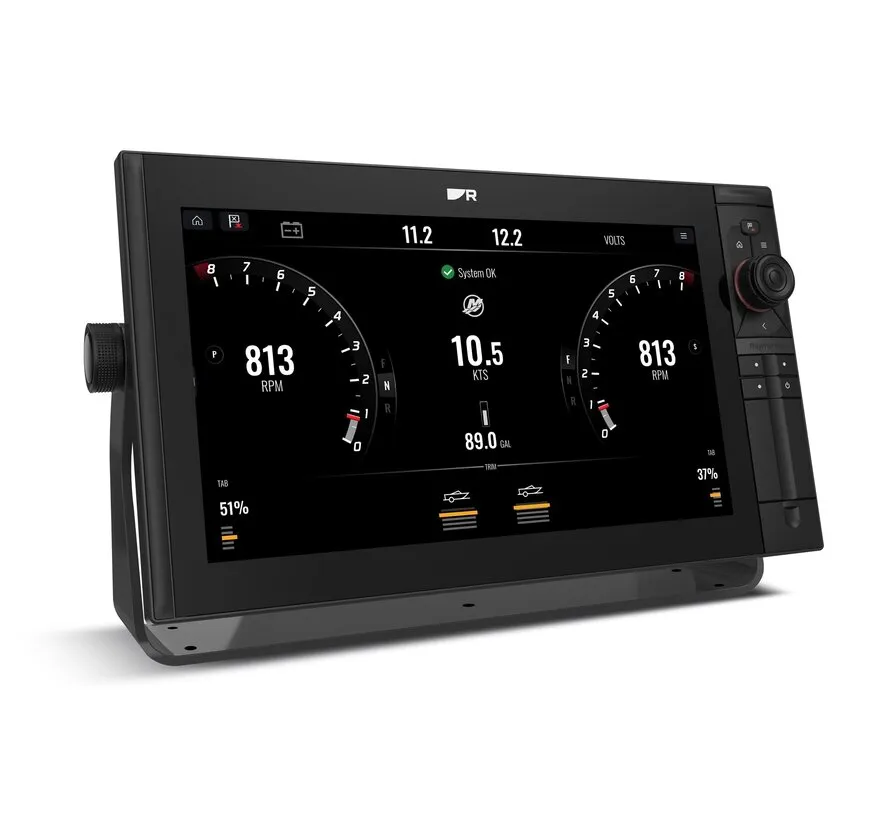

NMEA 2000 engine data
-
Compatible external sonar modules
Electrical and physical specifications
-
Nominal supply voltage: 12/24 V DC
-
Operating voltage: 8–32 V DC
-
Power consumption at 12 V: approximately 42.36 W
-
Power consumption at 24 V: approximately 40.8 W
-
Recommended fuse: 15 A
-
Waterproof rating: IPX6 / IPX7
-
Operating temperature: -25 °C to +55 °C
-
Bracket-mounted dimensions including cable clearance (W × H × D): 482.5 × 281.2 × 233.4 mm
-
Flush-mounted dimensions including cable clearance (W × H × D): 452.02 × 258 × 240.4 mm
Package contents
-
Raymarine Axiom 2 Pro 16 S display
-
User-configurable keypad
-
Suncover
-
Mounting gasket and fixings
-
DeviceNet to SeaTalkNG adapter cable, 1 m
-
RayNet network cable, 2 m
-
Power/video/audio cable, 1.5 m
-
Grounding hardware
-
Documentation
Not included: detailed navigation chart, sonar transducer, CPT-S adapter A80490 or radar antenna.
