Raymarine Axiom 2 Pro 16 RVM 16-inch MFD with RealVision MAX and 1 kW CHIRP sonar

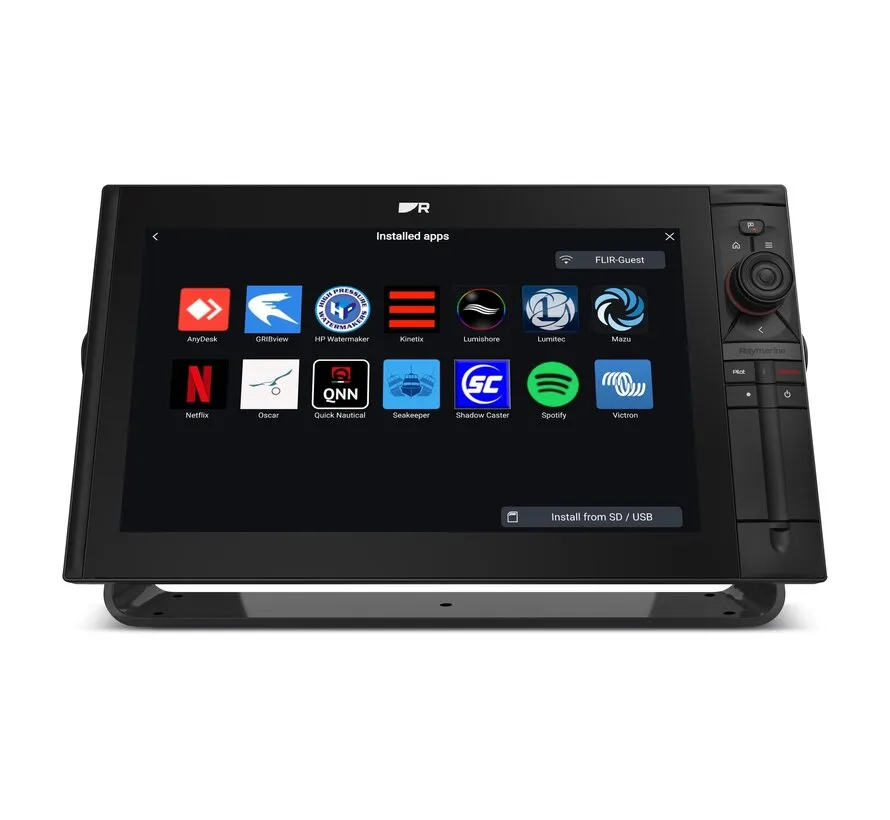

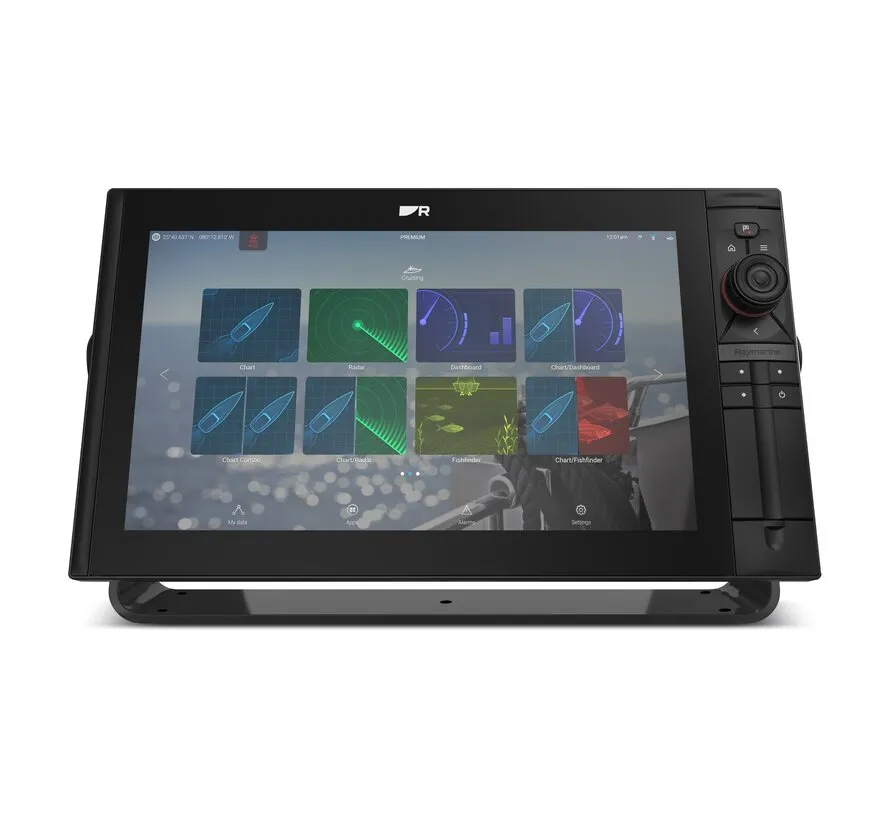

The Raymarine Axiom 2 Pro 16 RVM is a 16-inch multifunction chartplotter designed for advanced marine navigation and fish-finding applications.

Its Full HD IPS display combines touchscreen control with physical HybridTouch 2 keys, allowing reliable operation in demanding marine conditions.

The integrated 6-core processor supports navigation charts, radar, AIS, autopilot control, video and marine networking through the Raymarine LightHouse operating system.

The RVM version features a built-in multichannel RealVision MAX sonar system and an additional 1 kW CHIRP sonar channel for deep-water applications.

Display and performance

• Brand: Raymarine

• Model: Axiom 2 Pro 16 RVM

• Part number: E70658

• Product type: multifunction chartplotter / fishfinder

• Screen class: 16 inch

• Active LCD size: 15.6 inch

• Display type: IPS

• Resolution: 1920 × 1080 Full HD

• Brightness: 1200 nits

• Viewing angle: 88° in all directions

• Controls: HybridTouch 2

• HydroTough water-repellent screen coating

• Processor: 6-core

• Operating system: LightHouse

Navigation and GPS

• Integrated GNSS receiver

• GPS, GLONASS, Galileo and BeiDou

• GPS update rate: 10 Hz

• SBAS support

• LightHouse Charts compatible

• Navionics+ compatible

• Navionics Platinum+ compatible

• Waypoint, route and track management

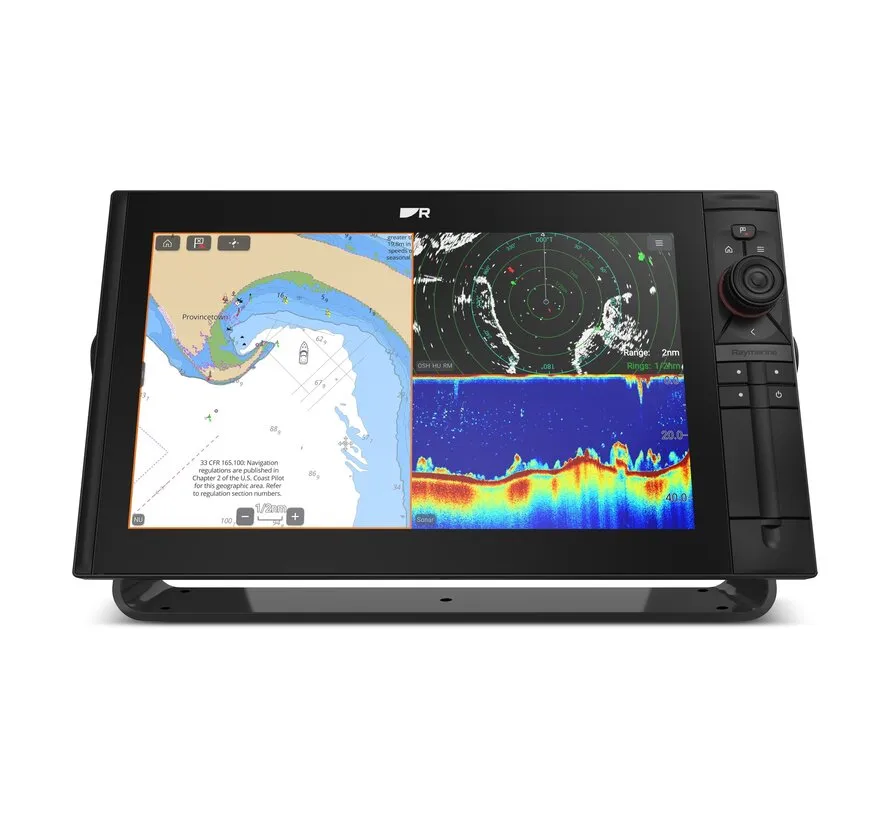

• Radar overlay with a suitable connected radar

Integrated sonar

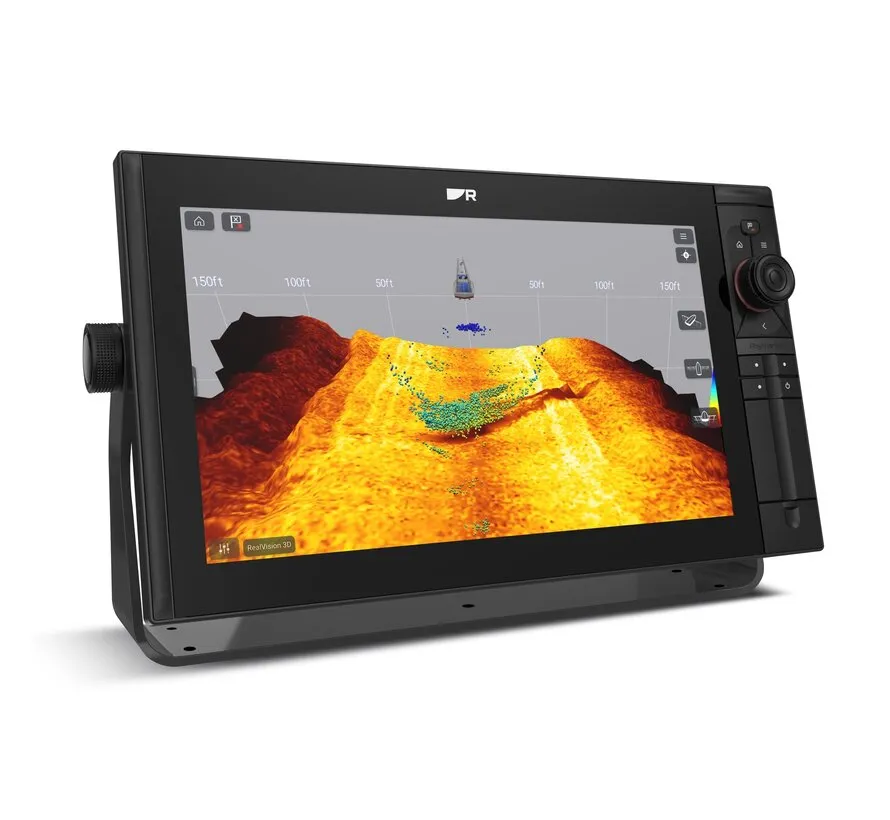

• RealVision MAX 3D

• Traditional High CHIRP

• DownVision

• SideVision

• Separate 1 kW CHIRP fishfinder channel

Sonar specifications:

• RealVision MAX High CHIRP: 600 W RMS

• Traditional CHIRP: 1000 W RMS

• High CHIRP frequency: 200 kHz

• DownVision: 350 kHz

• SideVision: 350 kHz

• RealVision 3D: 350 kHz

• 1 kW CHIRP frequency range: 42–250 kHz, depending on transducer

Maximum depth capabilities under optimal conditions:

• High CHIRP: approximately 366 m

• DownVision: approximately 183 m

• SideVision: approximately 91 m

• RealVision 3D: approximately 91 m

• 1 kW CHIRP: up to approximately 914 m with a suitable transducer

Transducer connections

• 1 × 25-pin RealVision MAX / RealVision 3D connector

• 1 × 11-pin 1 kW CHIRP connector

Compatible with suitable Raymarine RV, RVM and 1 kW CHIRP transducers.

Actual sonar modes and performance depend on the connected transducer and installation conditions.

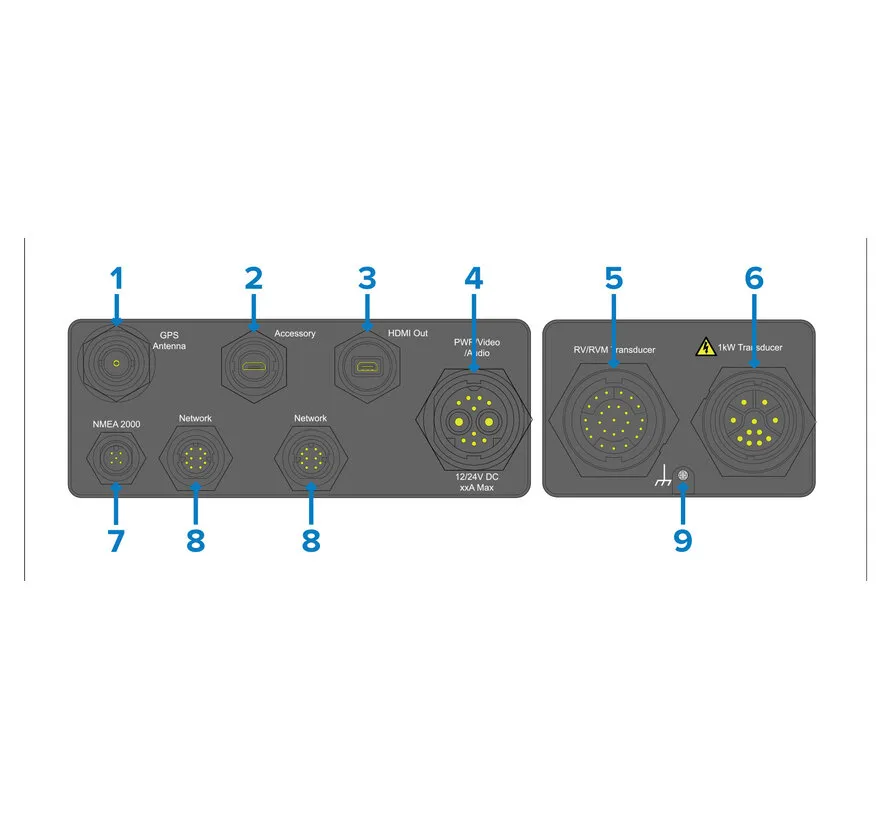

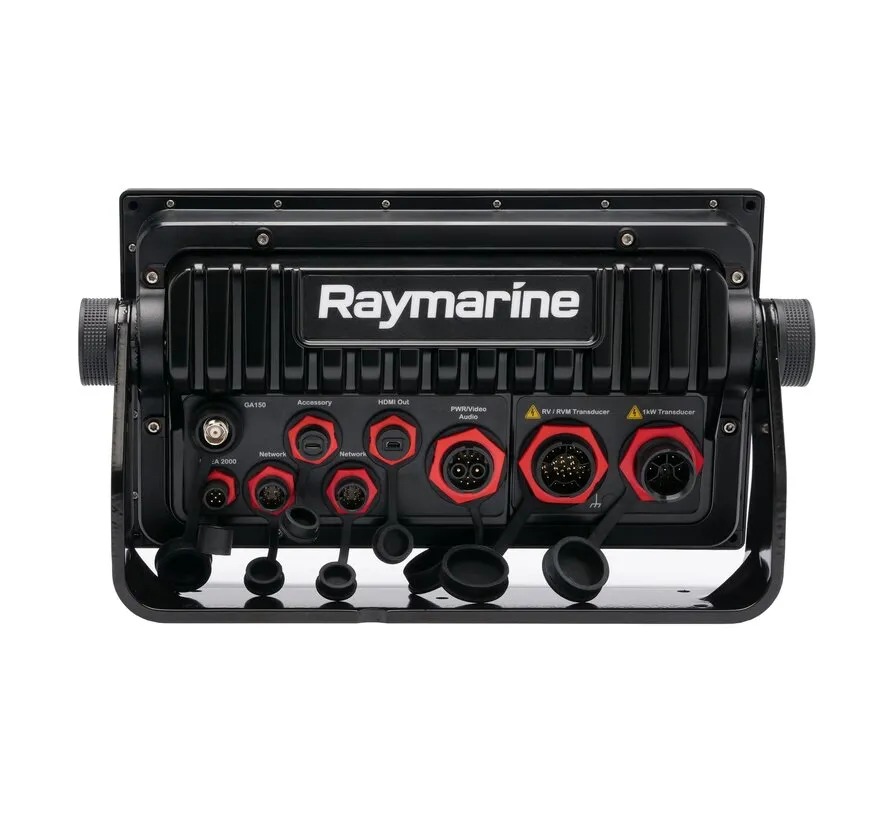

Networking and connectivity

• NMEA 2000: DeviceNet

• SeaTalkNG: via included adapter

• RayNet Ethernet: 2 × Gigabit ports

• WiFi: 2.4 GHz and 5 GHz

• Bluetooth: version 4.0

• USB: Micro-B

• HDMI output: Micro-HDMI Type D

• Analogue video input: BNC via power cable

• Audio connections: RCA via power cable

• External GPS antenna: TNC connector

• Internal storage: 64 GB

• Memory expansion: 2 × front-accessible microSDXC slots

• NMEA 0183: optional via a suitable interface

Compatible system expansions

• Raymarine Quantum 2 radar

• Cyclone open-array radar

• Raymarine Evolution autopilot

• AIS receivers and transponders

• FLIR thermal imaging cameras

• CAM300 marine cameras

• ClearCruise Augmented Reality

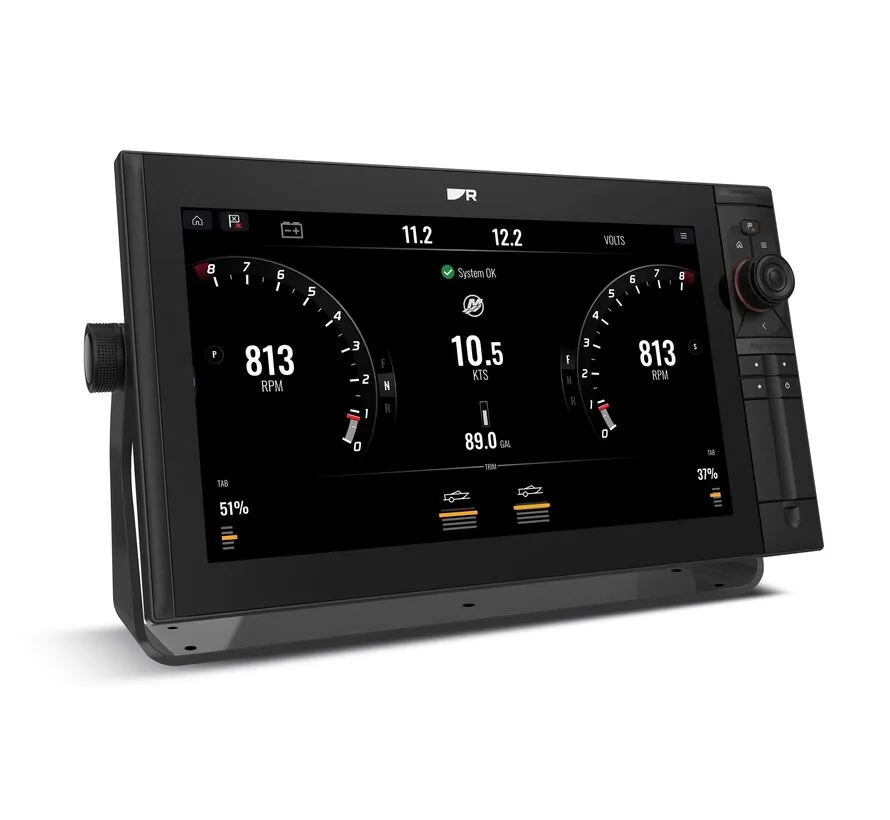

• NMEA 2000 engine data

• Compatible external sonar modules

Electrical specifications

• Nominal supply voltage: 12/24 V DC

• Operating voltage: 8–32 V DC

• Power consumption at 12 V: approximately 42.36 W

• Power consumption at 24 V: approximately 40.8 W

• Recommended fuse: 15 A

• NMEA 2000 LEN: 1

• Waterproof rating: IPX6 / IPX7

• Operating temperature: -25 °C to +55 °C

Dimensions

Bracket mounting, including cable clearance:

• Width: 482.5 mm

• Height: 281.2 mm

• Depth: 233.4 mm

Flush mounting, including cable clearance:

• Width: 452.02 mm

• Height: 258 mm

• Depth: 240.4 mm

Package contents

• Raymarine Axiom 2 Pro 16 RVM display

• User-configurable keypad

• Suncover

• Mounting gasket and fixings

• Two mounting knobs

• DeviceNet to SeaTalkNG adapter cable, 1 m

• RayNet network cable, 2 m

• Power/video/audio cable, 1.5 m

• Grounding hardware

• Documentation

Not included:

• Detailed navigation chart

• RealVision MAX transducer

• 1 kW CHIRP transducer

• Radar antenna

• U-shaped mounting bracket

Available chart versions

• E70658 – no detailed navigation chart

• E70658-00-WEU – LightHouse Charts Western Europe

• E70658-00-NEU – LightHouse Charts Northern Europe

• E70658-00-MED – LightHouse Charts Mediterranean
