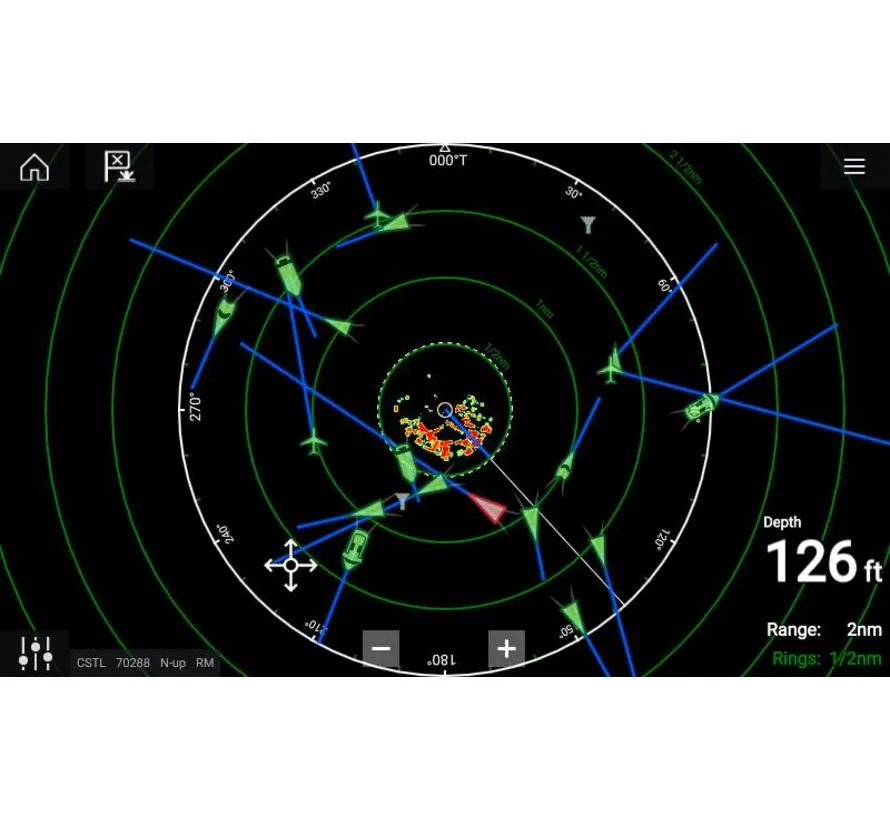

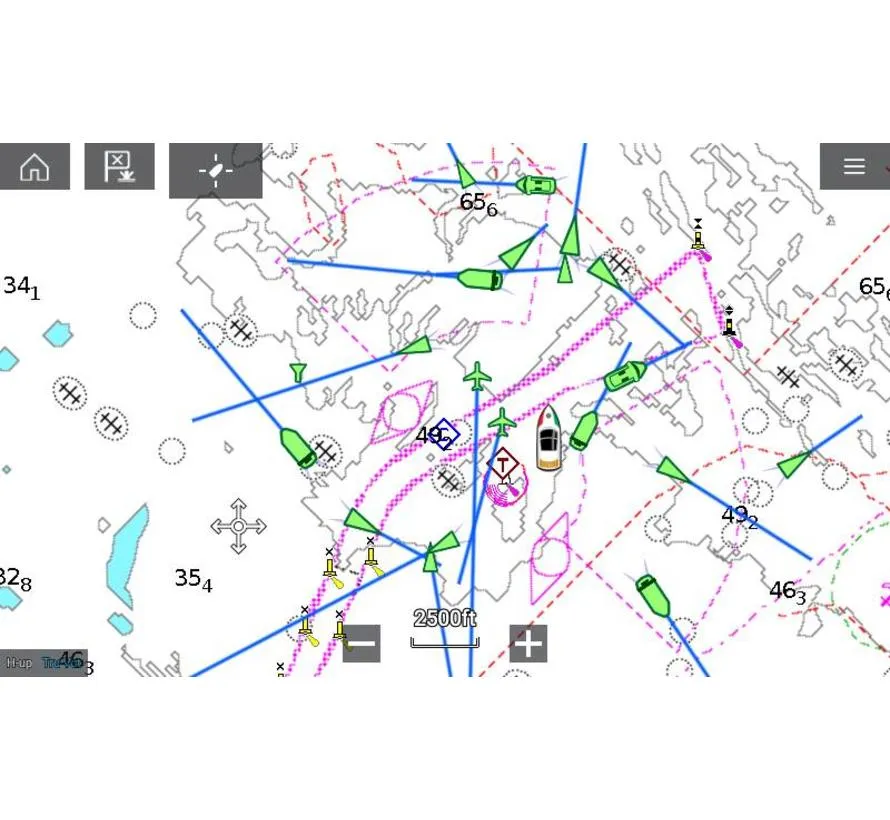

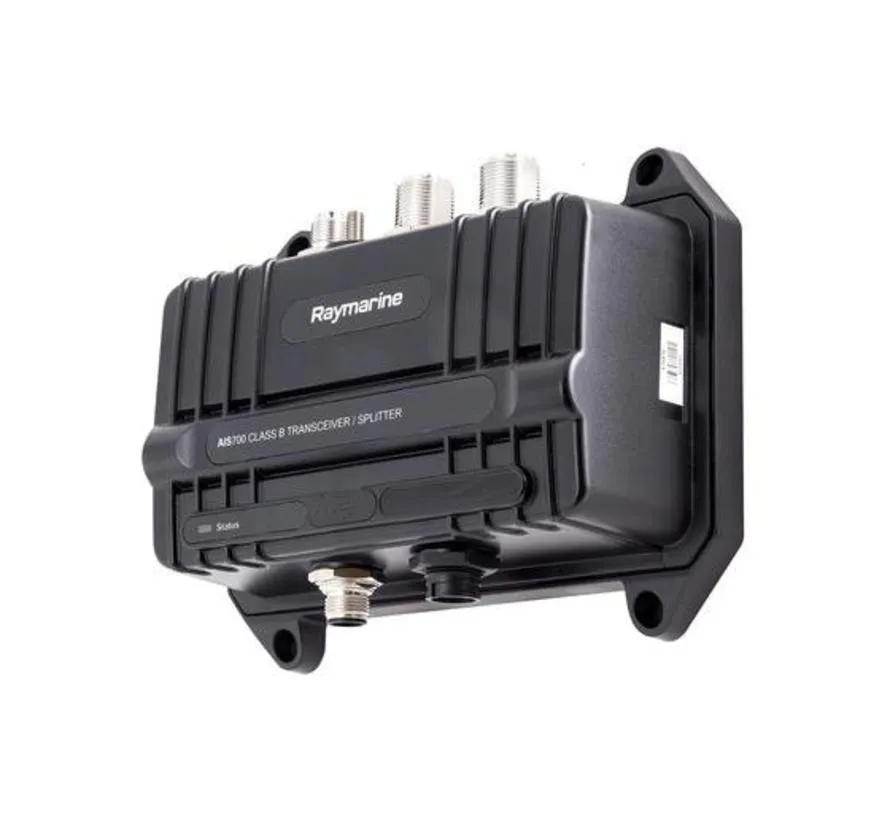

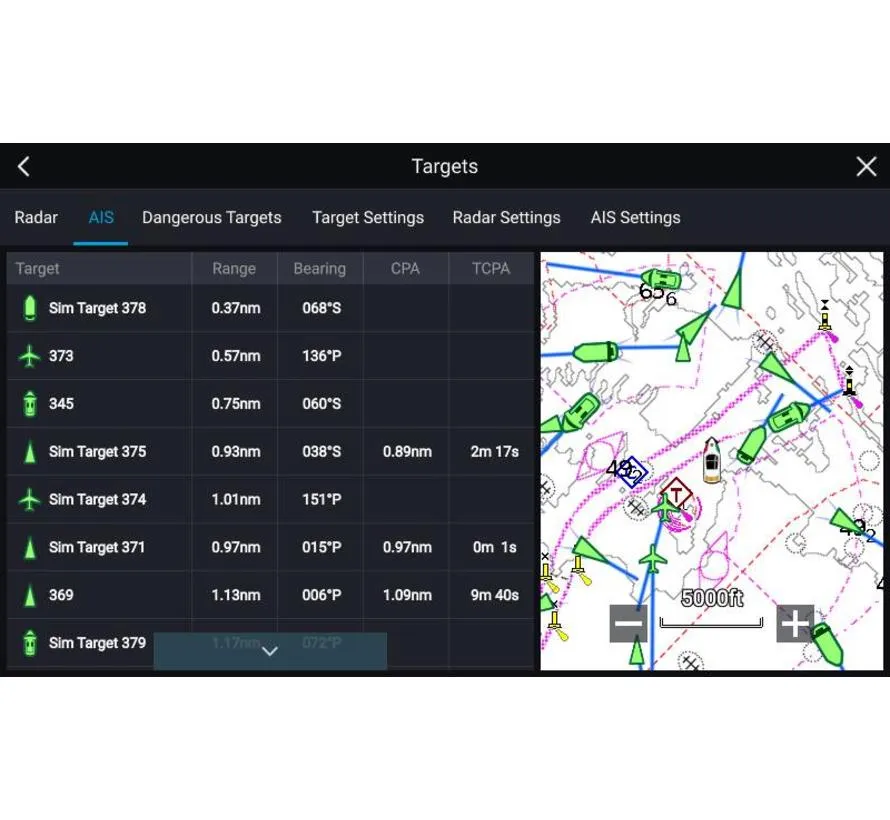

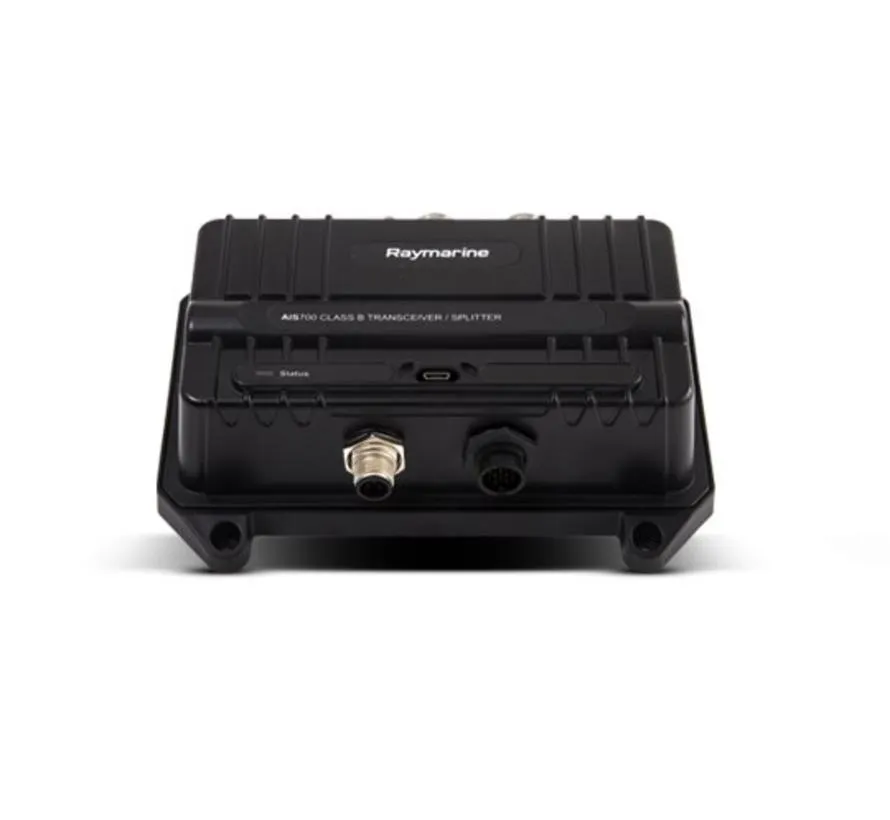

The Raymarine AIS700 is a Class B AIS transceiver for boats that receives AIS signals and also transmits your own vessel information. This allows other AIS-equipped vessels to be shown on the navigation display while making your own boat visible to other vessels and shore stations.
The AIS700 uses SOTDMA technology with 5 W transmit power. This provides a stronger Class B AIS signal than older 2 W CSTDMA systems. The built-in VHF antenna splitter simplifies installation by allowing the existing VHF antenna to be shared between the radio and AIS installation. The unit supports NMEA 2000 / SeaTalkNG, NMEA 0183 and USB for connection to Raymarine multifunction displays, older navigation systems and PC navigation software.
Key features
- Class B AIS transceiver for transmitting and receiving
- SOTDMA / Class B+ technology
- Transmit power: 5 W
- Built-in VHF antenna splitter
- External GNSS/GPS antenna included
- Suitable for Raymarine multifunction displays
- Supports NMEA 2000 / SeaTalkNG
- Supports NMEA 0183
- USB connection for PC or laptop
- Silent Mode available by software or hardware setting
- Receives AIS data from other vessels
- Transmits own vessel information
- Suitable for motorboats, sailing yachts, yachts and professional leisure marine installations
Product specifications
- Brand: Raymarine
- Model: AIS700
- Article code: E70476
- Product type: AIS transceiver / AIS transmitter-receiver
- AIS class: Class B
- AIS technology: SOTDMA
- Transmit power: 5 W
- Integrated VHF antenna splitter: yes
- GPS / GNSS: yes, external GNSS antenna included
- AIS receive: yes
- AIS transmit: yes
- Silent Mode: yes
- NMEA 2000: yes
- SeaTalkNG: yes, via adapter cable
- NMEA 0183: yes
- USB: yes
- WiFi: no
- Ethernet: no
- VHF transmit frequency range: 156.0 MHz to 162.025 MHz
- VHF receive frequency range: 156.0 MHz to 174.0 MHz, depending on specification source
- VHF radio connector: SO-239 coaxial
- GNSS antenna connector: 50 ohm TNC coaxial
- NMEA 2000 connector: DeviceNet male
- USB connector: Micro-B
- Supplier-listed scope of delivery:
- AIS700 Class B SOTDMA AIS transceiver
- GNSS/GPS antenna with approx. 10 m cable
- Power/data cable approx. 2 m
- VHF radio cable approx. 1 m
- Micro-C to SeaTalkNG adapter cable
- GPS antenna gasket
- GPS antenna mast mount
- Mounting accessories
- Documentation
- Application: AIS visibility, navigation safety, collision avoidance, connection to MFD or navigation software
