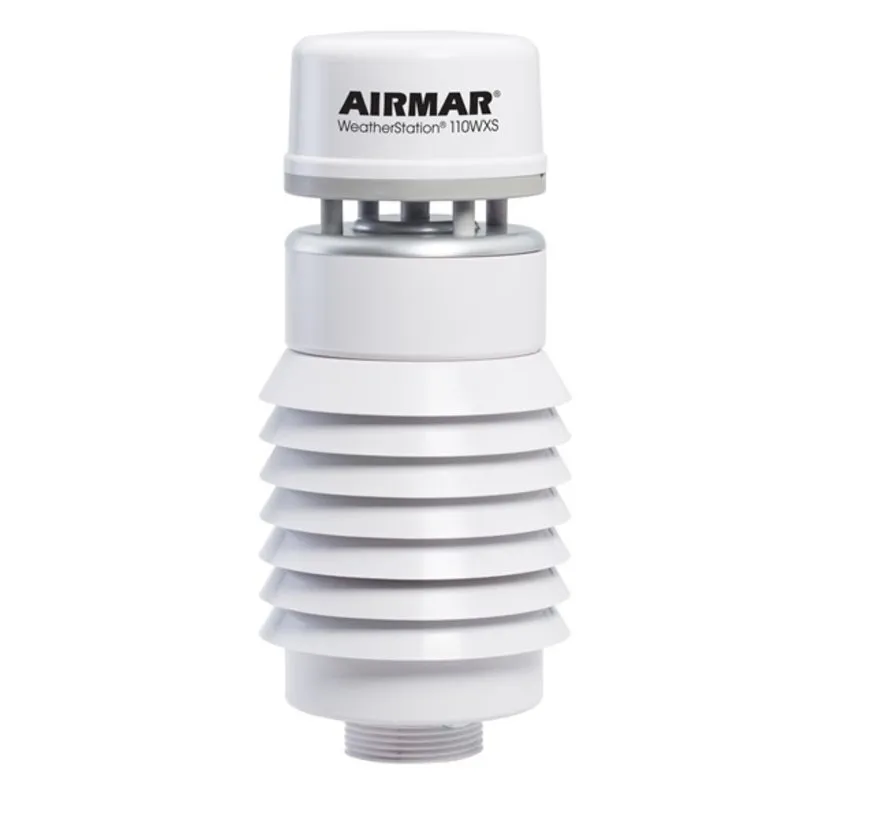

Airmar 110WXS WeatherStation a complete weather station.

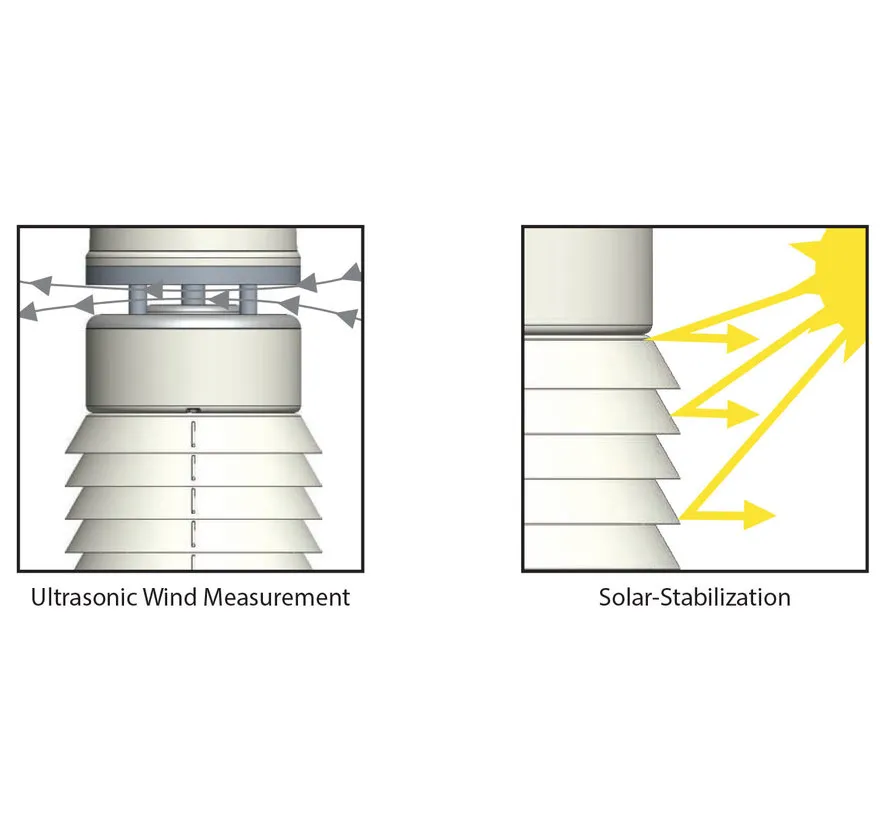

A complete weather station with multiple sensors, the 110WXS features a solar radiation shield for greater accuracy and stability of temperature and relative humidity readings. Ultrasonic measurement of wind speed and angle is virtually maintenance-free and there are no moving parts to wear out. Barometric pressure and calculated wind chill and heat index round out the critical parameters being measured. The durable, rugged housing is designed as an integral part of a land station.
Additional parameters: atmospheric pressure, calculated dew point, heat index and wind chill factor
Rugged, compact, UV-stabilized housing with no moving parts.
Weight: 300 g (0.70 lb.).
Wind Speed:
Range: 0 to 40 m/s
Accuracy: 5% at 10 m/s at 4 angles
Resolution: 0.1 m/s
Calculations: User configurable damping
Wind Direction:
Range: 0 to 359.9°
Accuracy: ±3° at 10 m/s
Resolution: 0.1°
Calculations: User configurable damping
Air Temperature:
Range: -40 to 80°C (-40 to 176°F)
Accuracy: ±0.3°C at 10 m/s
Resolution: 0.1°C
Relative Humidity:
Range: 0 to 100% RH
Accuracy: ±3% RH at 0 to 90% RH at 20°C
Resolution: 0.1% RH
Barometric Pressure:
Range: 300 to 1100 hPa
Accuracy: ±0.5 hPa at 25°C (or better)
Resolution: 0.1 hPa
Operating Temperature Range: -25 to 55°C (-13 to 131°F)
Power:
Supply Voltage: 9 to 40 VDC
Supply Current: <55 mA (<0.7 W) at 12 VDC
NMEA 2000® Load Equivalency Number (LEN): 2
Communications:
Available Interface: Serial RS-232, Serial RS-422, CAN
Available Protocol: Comma delimited ASCII, NMEA 0183, NMEA 2000
Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
Mounting-thread Size on Base: Standard 1“-14 UNS (3/4” NPT optional).
Certifications and Standards: CE, IPX4, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN15014982
The Airmar 110WXS WeatherStation is supplied without cables.
