Airmar CM599LH barewire transducer for deep water. The CM599LH of 2 to 3 kW can go to a depth of 3048 meters, with an operating frequency of 28 to 60 kHz and 130 to 210 kHz. A beam width of 9 to 23 degrees, and can accommodate angles between the plane and keel of 4 to 8 degrees.

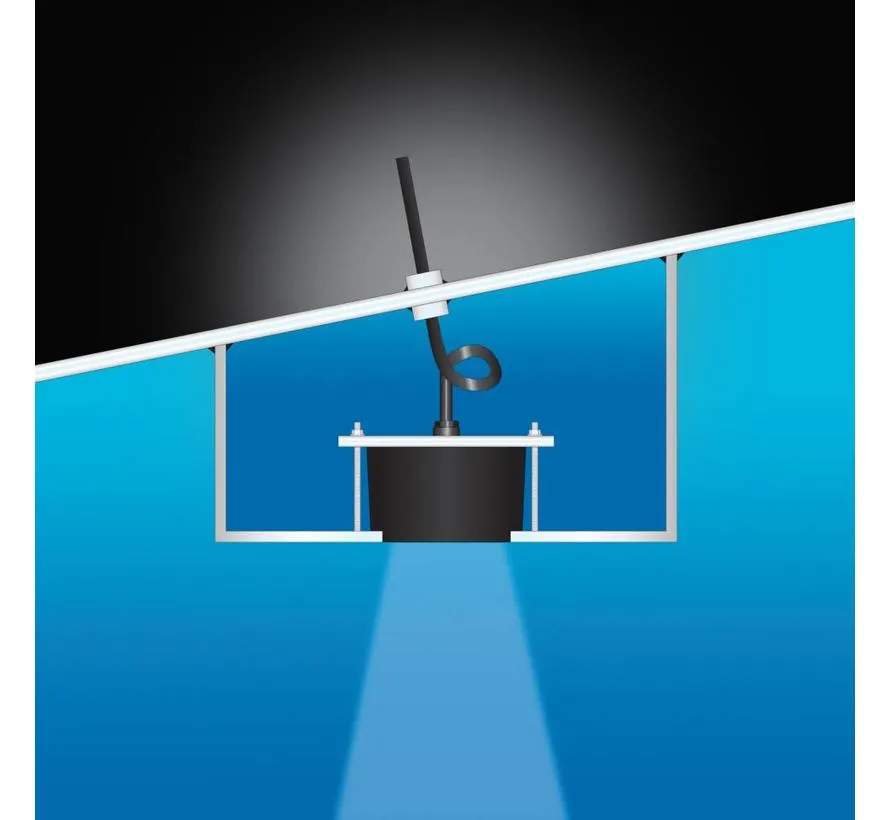

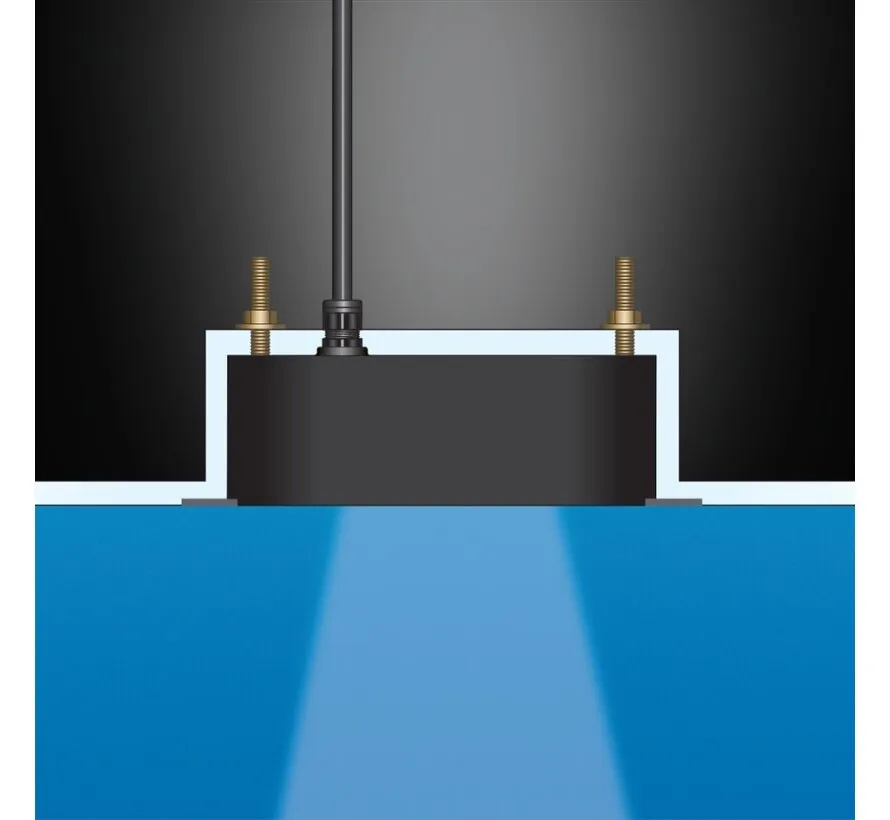

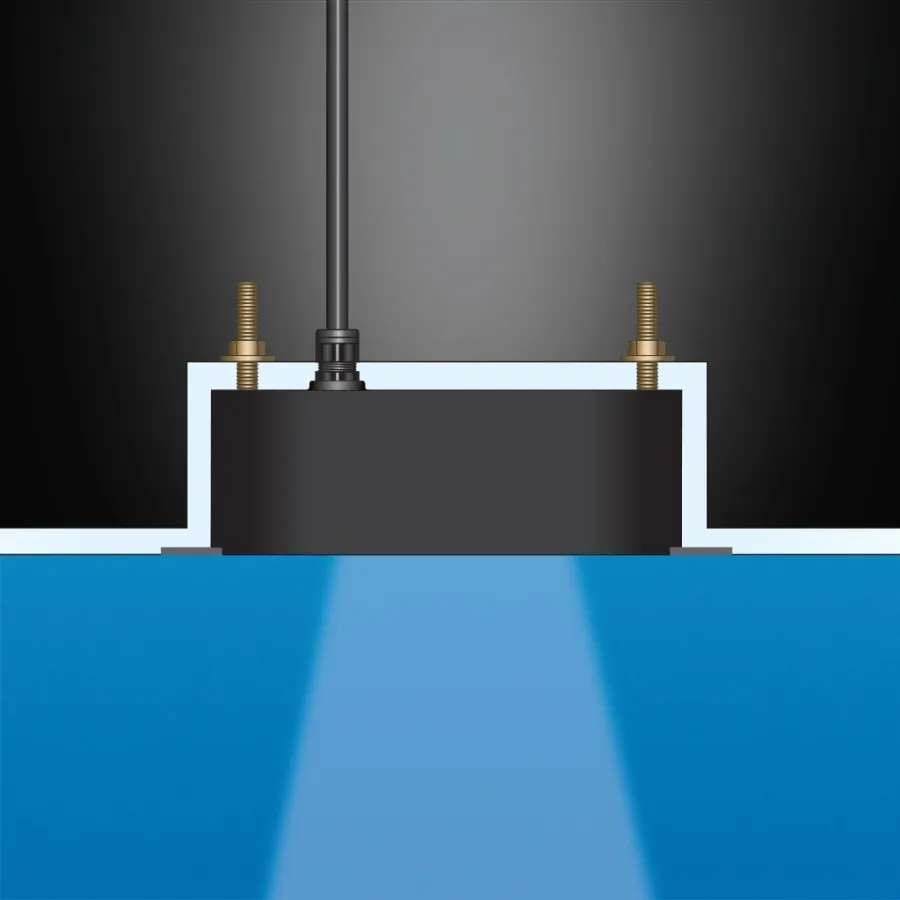

The CM599 provides 5 to 10 times more detail and resolution, so accurate that it is possible to distinguish between individual baitfish, game fish and underwater structures. The pocket-mount unit is installation dependent. The transducer kit comes with installation instructions, please follow the instructions carefully. This transducer is not ideal for fishing in shallow water.
Specifications Airmar CM599LH:
Depth only
Low-CHIRP from 28 kHz to 60 kHz, 23° to 9° beamwidth
High-CHIRP from 130 kHz to 210 kHz, 8 ° to 4 ° beamwidth
112 kHz total bandwidth of one transducer
Fishing profile: recreational and commercial coastal and inshore fishing (deep-sea canyon and marine tracking)
Epoxy transducer housing
Hull type: solid fiberglass only
Exclusive Xducer ID® technology
Weight 13.73 kg
This pocket-mount transducer uses very thin beams and low/high frequencies to transmit depth and temperature information and sonar data to the Garmin Marine Network.
