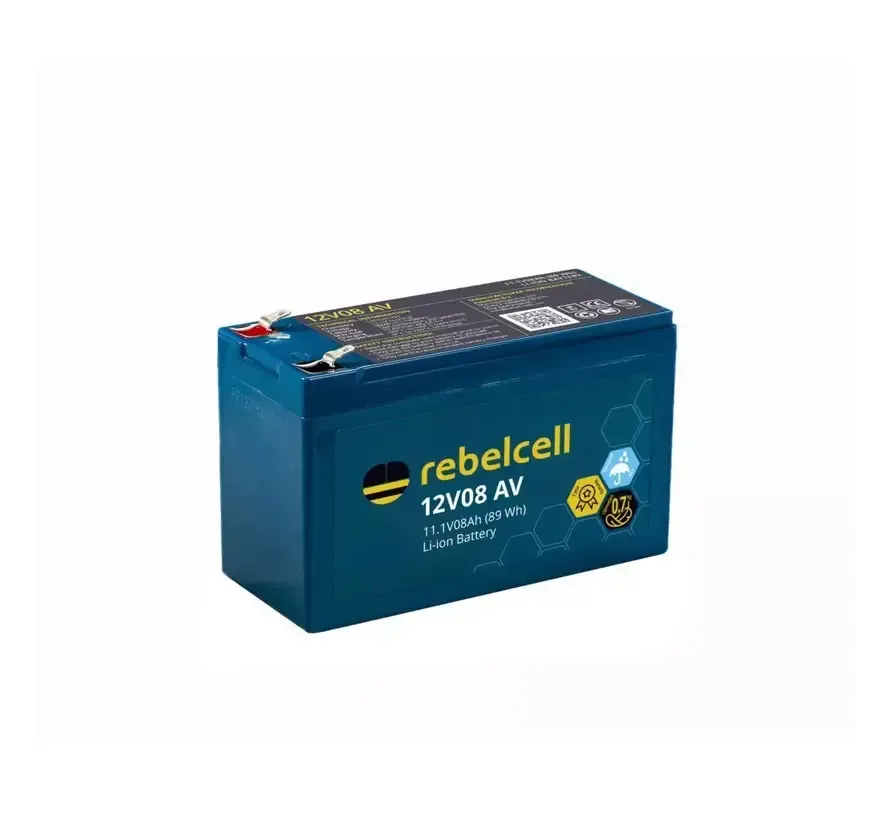

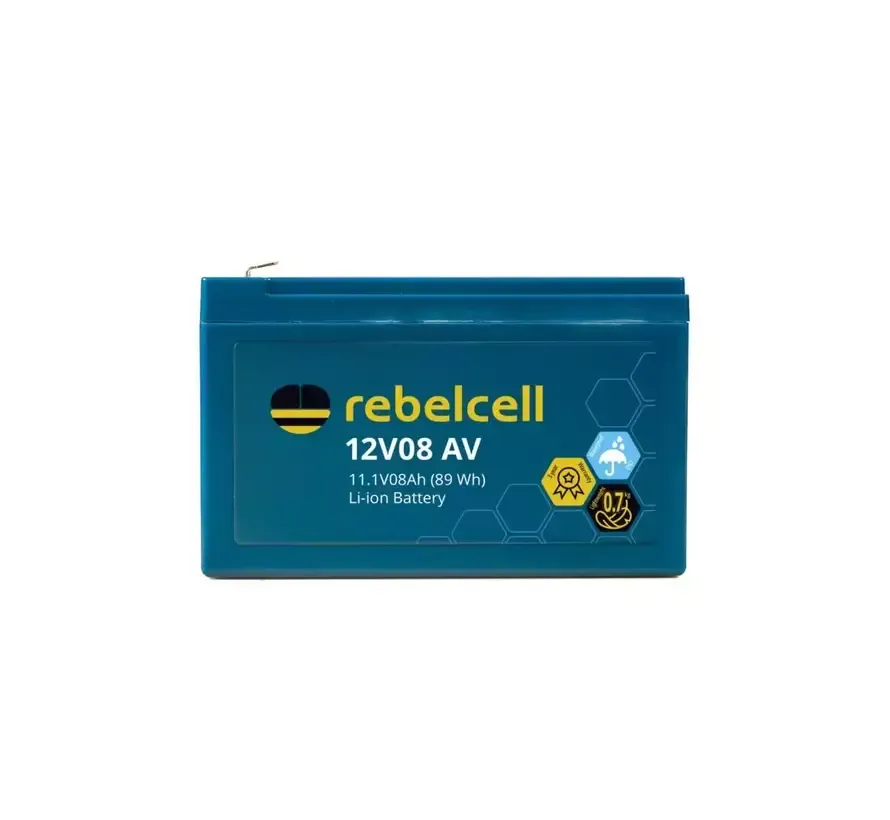

The Rebelcell 12V08 AV lithium battery is a compact and lightweight 12V Li-ion battery for mobile use onboard and at the waterside. It is designed for small 12V depth sounders and fishfinders of approx. 4-5 inches, and is also suitable for bait boats, belly boats, kayaks, mobile alarm systems and other light 12V equipment.
With a capacity of 8 Ah / 89 Wh and a weight of approx. 0.7 kg, this battery is practical where low weight and compact installation space are important. The integrated Battery Management System protects the battery during charging and discharge. The IP67 design provides improved protection against dust and water compared with older AV versions.
Key features
- Compact lithium-ion battery for 12V equipment
- Capacity: 8 Ah / 89 Wh
- Suitable for small fishfinders and depth sounders of approx. 4-5 inches
- Also suitable for bait boats, belly boats, kayaks and mobile systems
- Lightweight: approx. 0.7 kg
- Integrated Battery Management System
- Protection rating: IP67
- Faston connections
- Maximum continuous discharge: 10 A
- Peak discharge: 20 A / 10 seconds
- Up to approx. 1500 cycles at 80% discharge
- Can be carried as hand luggage when flying, subject to airline rules
- Warranty: 3 years according to Rebelcell

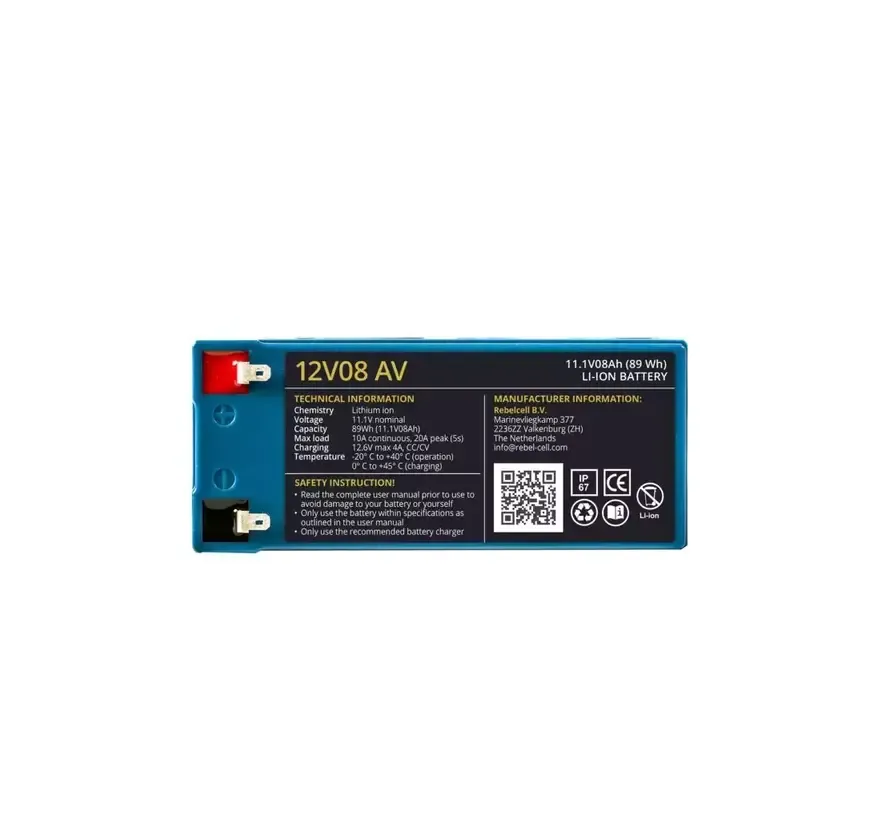

Product specifications
- Brand: Rebelcell
- Product code: 12008AVREUA
- Model: 12V08 AV Lithium Battery – NEW
- Product type: lithium-ion battery
- Chemistry: Li-ion
- Nominal voltage: 11.1 V
- Voltage range: 9.0-12.6 V
- Capacity: 8 Ah
- Nominal energy: 89 Wh
- Comparable lead battery: approx. 15 Ah
- Self-discharge: 2-4% per month
- Maximum continuous discharge: 10 A
- Peak discharge: 20 A / 10 seconds
- Lifetime at 80% discharge: approx. 1500 cycles
- Lifetime at 100% discharge: approx. 1000 cycles
- Connections: Faston
- Parallel connection: yes, maximum 4 batteries in parallel
- Series connection: no
- Protection rating: IP67
- Dimensions: 151 x 65 x 95 mm
- Weight: approx. 0.7 kg
- Weight including packaging: approx. 0.75 kg
- Recommended charger: Rebelcell 12.6V4A Li-ion charger
- Indicative charging time with 4A charger: approx. 2-3 hours
- Application: fishfinder, depth sounder, bait boat, belly boat, kayak, mobile alarm system and light 12V equipment
- Note: charge only with a suitable Rebelcell Li-ion charger
