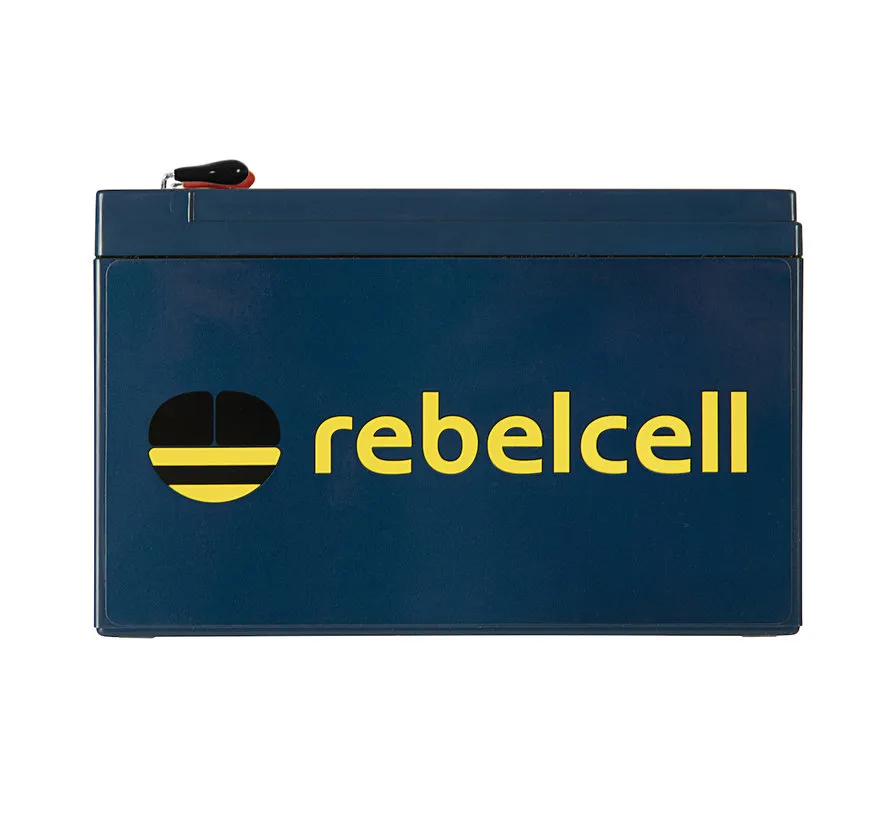

The Rebelcell 12V07 AV Li-ion battery is a compact and lightweight 12V lithium-ion battery for mobile use onboard and at the waterside. It is suitable for small fishfinders, depth sounders, bait boats, belly boats, kayaks and other light 12V equipment.
Its low weight and compact size make this battery practical where portability and limited installation space are important. The integrated Battery Management System helps protect against deep discharge, overvoltage, high temperature and excessive discharge current.
Key features
- Compact lithium-ion battery for 12V equipment
- Capacity: 7 Ah / 87 Wh
- Suitable for small fishfinders and depth sounders
- Also suitable for bait boats, belly boats, kayaks and mobile power use
- Lightweight design of approx. 0.65-0.75 kg, depending on source
- Voltage range: 9.0-12.6 V
- Maximum continuous discharge: 10 A
- Peak discharge: 15 A
- Integrated BMS with cell balancing
- IP54 protection rating
- Faston connections
- Up to approx. 1000 cycles at 100% discharge
- Up to approx. 1500 cycles at 80% discharge

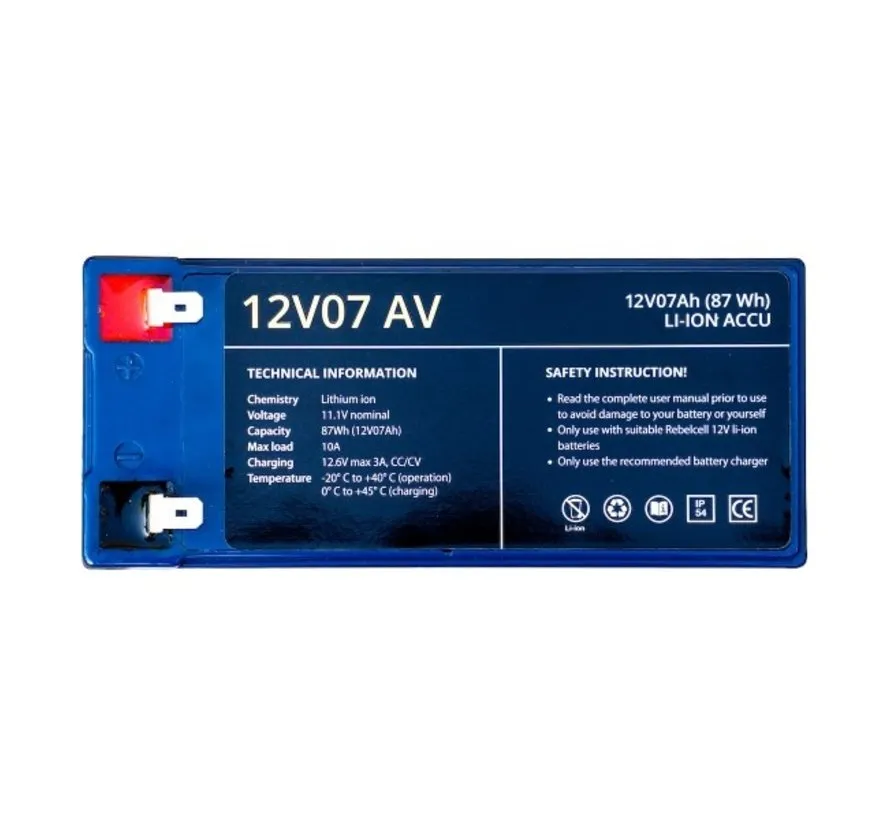

Product specifications
- Brand: Rebelcell
- Model: 12V07 AV
- Product type: lithium-ion battery
- Chemistry: lithium-ion
- Nominal voltage: 11.1 V
- Voltage range: 9.0-12.6 V
- Capacity: 7 Ah
- Nominal energy: 87 Wh
- Comparable lead battery: up to approx. 9 Ah
- Maximum continuous discharge: 10 A
- Peak discharge: 15 A
- Lifetime at 80% discharge: approx. 1500 cycles
- Lifetime at 100% discharge: approx. 1000 cycles
- Connections: Faston
- Maximum charge current: 4 A
- Recommended charger: Rebelcell 12.6V4A Li-ion charger
- Indicative charging time with 12.6V4A charger: approx. 2-3 hours
- Charging temperature: 0 °C to +45 °C
- Discharging temperature: -20 °C to +60 °C
- Storage temperature: 0 °C to +45 °C
- Protection rating: IP54
- Certification: CE
- Dimensions: 151 x 65 x 95 mm
- Weight: approx. 0.65-0.75 kg, depending on source
- Application: fishfinder, depth sounder, bait boat, belly boat, kayak and light 12V equipment
