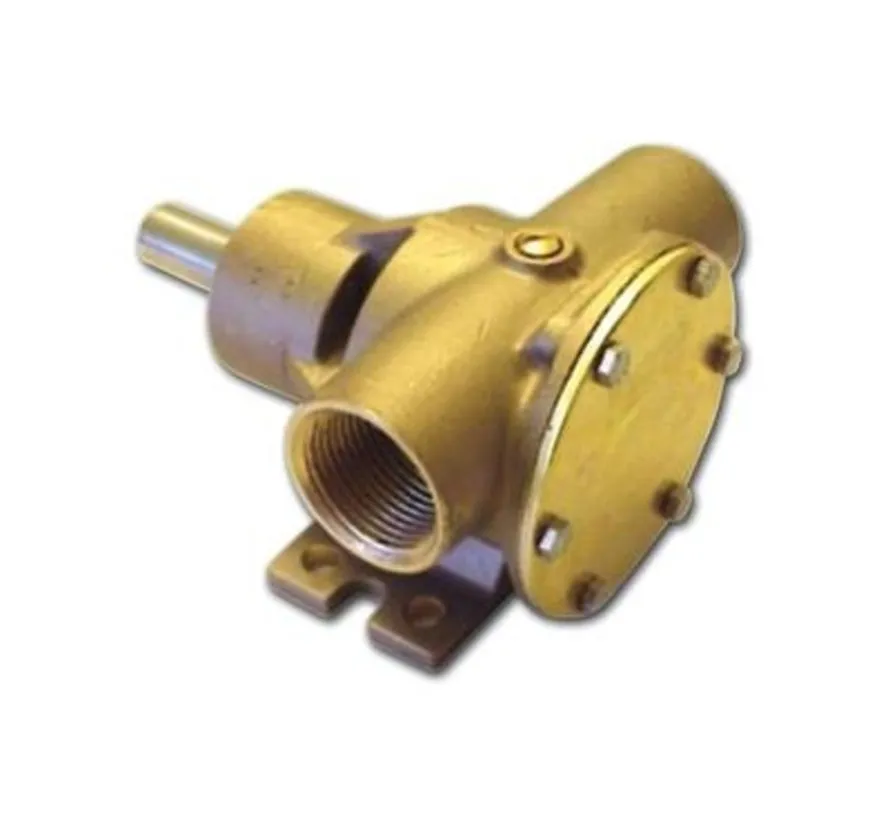

This Jabsco bronze cooling water pump is a mechanically driven flexible impeller pump for marine cooling systems. The pump has 1" female threaded connections and foot mounting for fixed installation near engine systems. It is designed for shaft, pulley and belt drive; always check engine layout and rotation direction before installation.
Key features
- Bronze cooling water pump for marine use
- Mechanical drive via pulley and belt system
- 1" female threaded water connections
- Foot-mounted design for fixed installation
- Flexible impeller pump
- Suitable for engine cooling and general cooling water applications
- Max. flow rate up to 96 l/min according to product data
- Common product description: 80 l/min version
- Must not be run dry
- Robust design for technical onboard installations
Product specifications
- Brand: Jabsco
- Article code: 52080-2001
- Pump type: PM36/J
- Product type: bronze cooling water pump / flexible impeller pump
- Drive: mechanical
- Drive type: suitable for pulley and belt drive
- Mounting: foot mounted
- Connection: female thread
- Thread: 1"
- Max. flow rate: up to 96 l/min according to product data
- Common webshop description: 80 l/min
- Maximum head: 3 m according to Exalto specification
- Shaft diameter: 16 mm
- Impeller hub: type 9
- Pump body material: bronze
- Length: approx. 170 mm
- Width: approx. 120 mm
- Height: approx. 115 mm
- Hole diameter: approx. 9 mm
- Weight: approx. 3.5 kg
- Application: cooling water circulation, engine cooling, marine pump systems
