B&G Triton2 kabellos wind/diepte set.

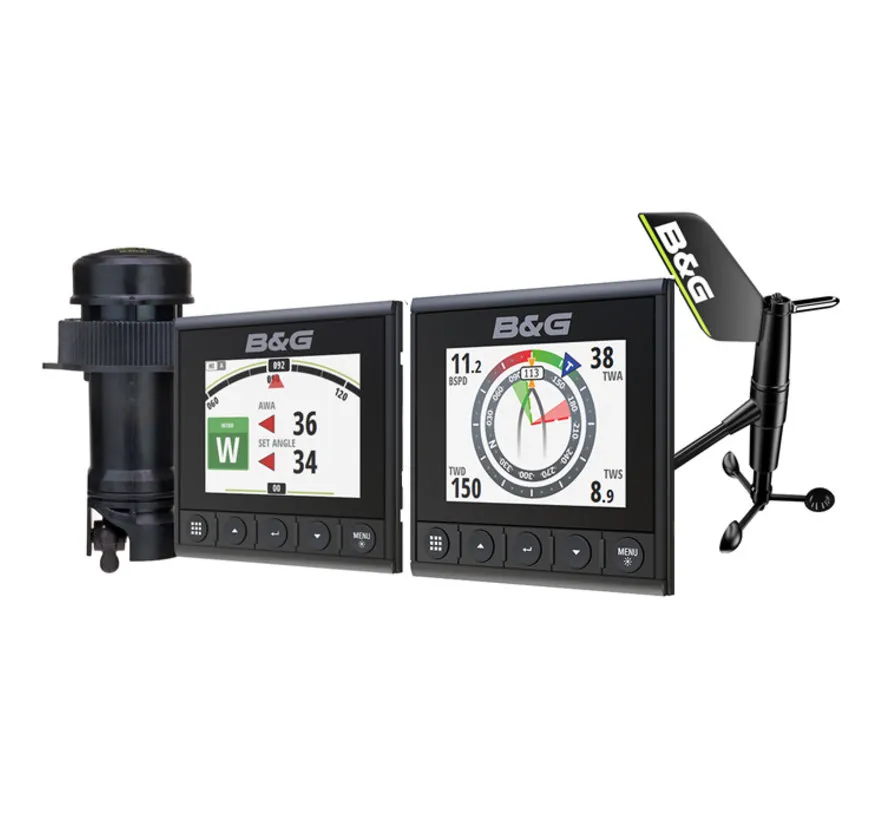

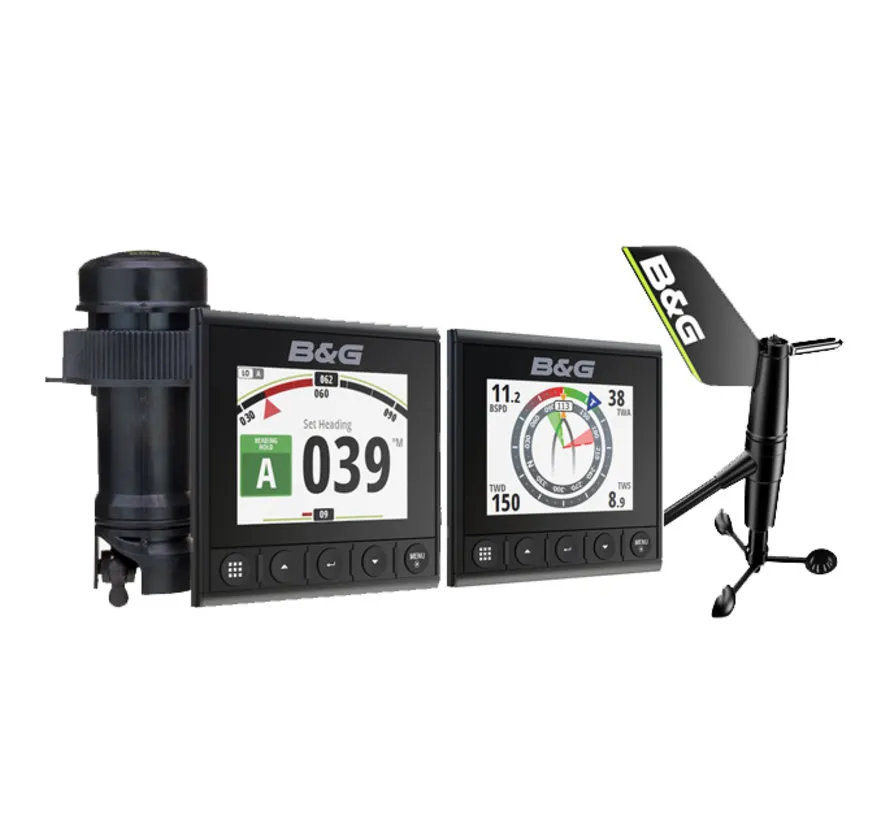

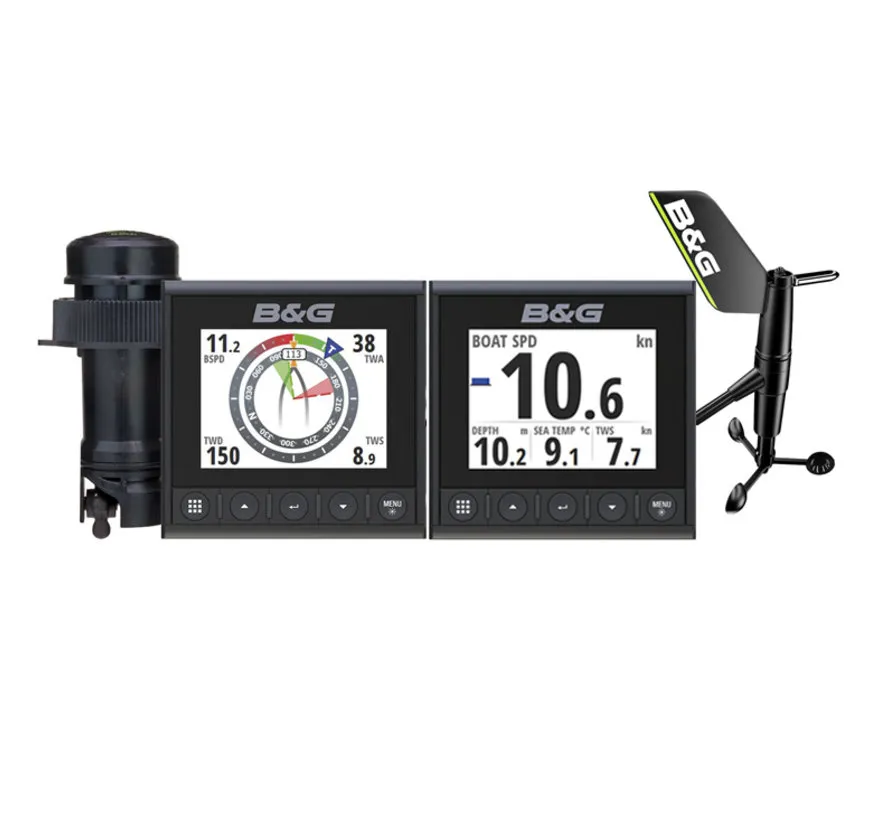

Bevat twee Triton² kleurenschermen von 4,1 inch, IDST810-transducer und WS320 Kabellose windsensor mit NMEA2000-starterkit.
Spezifikationen B&G WS320 Drahtlos Wind Sensor und interface:
- Gewicht 0.32 kg
- Waterproof IPx6 and IPx7
- Temperature -25°C to 65°C
- Power usage Solar powered
- Wind speed resolution 0.05 m/sec (0.1 Knots)
- Wind speed accuracy +/- 0.1 m/sec (0.2 kt) from 1 - 40 m/sec (2 - 80 kt)
- Wind speed range 0.25 - 50 m/sec (0.5 - 97 knots)
- Wind angle resolution 0.1°
- Wind angle accuray +/- 0.5°
- Drahtlos connectivity <=30m (98 ft)
- Data output Apparent wind speed and angle at 5 Hz

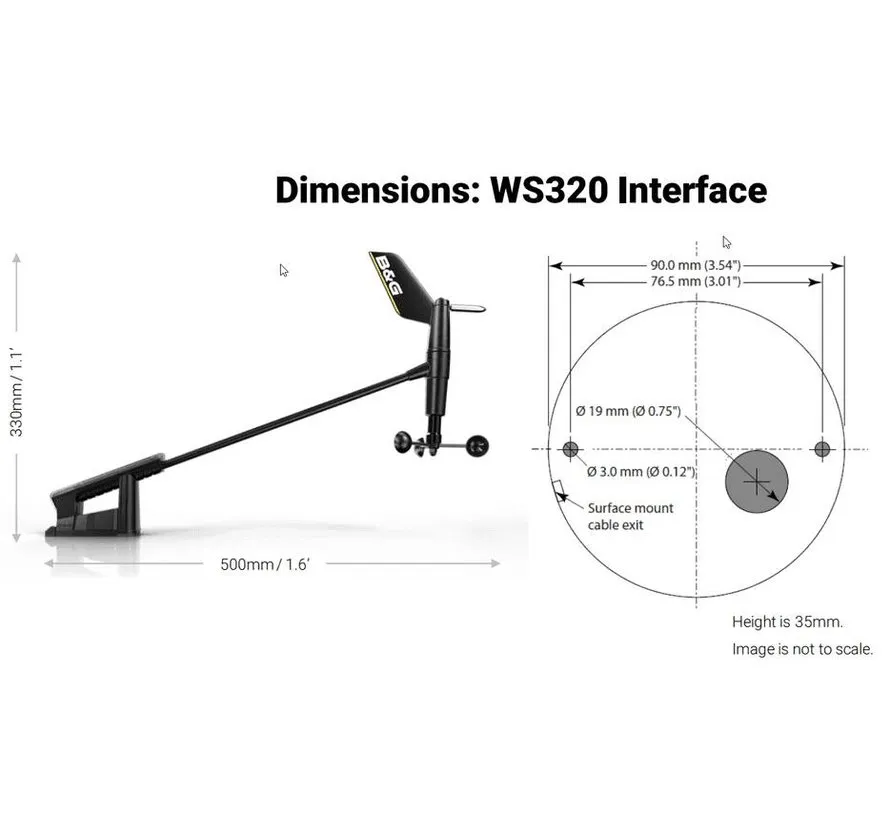

- Base station - Abmessungen Ø 90 mm, H 38 mm (Ø 3.54” H 1.50”)
- Power supply and interface 9-16 V DC via Micro-C network
- Power consumption 1.2 W (<100 mA at 12 V DC)
- Network Load 2 LEN (100 mA)
- Temperature Operating: -25°C to +60°C, Storage: -40°C to +85°C Humidity 66°C, 95% RH, 18 hrs
- Environmental protection IPx7
- In-rush current 2 A for 20 ms (@ internal 5 V)
- Connection cable: Micro-C drop cable 1.8 m (6 ft)
